MAX17527AATP+ - Analog Devices

Description: 5.5V to 60V, 6A Current-Limiter with OV, UV, Reverse Protection, and Power Limit

Download MAX17527AATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

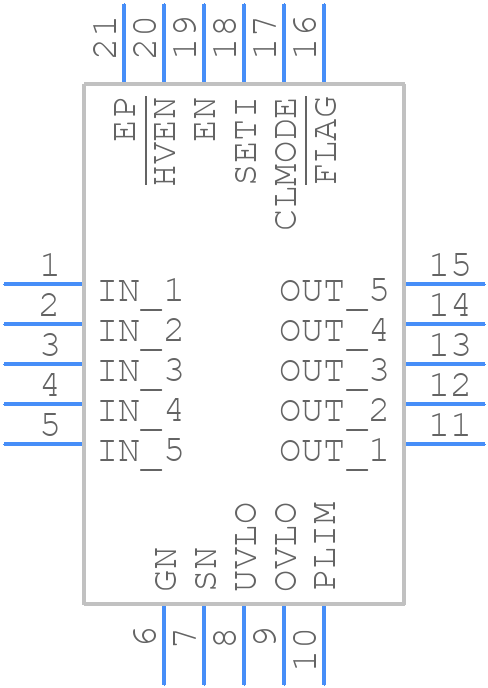

MAX17527AATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17527AATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2055+6C
click to zoom
3D Models
MAX17527AATP+ - Analog Devices - 3D model - Quad Flat No-Lead - T2055+6C
click to zoom

MAX17527AATP+ Details

  • Manufacturer Part Number:

    MAX17527AATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-03-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CURRENT LIMIT:6A; THERMAL SHUTDOWN:165C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N20

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.2SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    2.2 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +12V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX17527AATP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17527AATP+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides a recommended PCB layout, but it's also a good idea to consult with a PCB layout expert or use a PCB layout tool to ensure optimal performance.
  • The selection of input and output capacitors for the MAX17527AATP+ depends on the specific application requirements, such as the input voltage range, output voltage, and output current. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides some guidance on capacitor selection, but it's also a good idea to consult with a capacitor manufacturer or use a capacitor selection tool to ensure the right capacitors are chosen.
  • The MAX17527AATP+ has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to consult the datasheet and application notes for more information on temperature-related considerations.
  • The MAX17527AATP+ has a specific power-up and power-down sequence that must be followed to ensure proper operation. The device requires a monotonic power-up and power-down sequence, and the input voltage must be stable before the device is enabled. The datasheet provides more information on the power-up and power-down sequence, and it's also a good idea to consult with an application engineer or use a power management IC with a built-in power-up and power-down controller.
  • The typical efficiency of the MAX17527AATP+ depends on the input voltage, output voltage, and output current. According to the datasheet, the device has a typical efficiency of around 95% at a 12V input, 5V output, and 1A output current. However, the actual efficiency may vary depending on the specific application and operating conditions.
