MAX17561AUD+ - Analog Devices

Description: Adjustable Overvoltage and Overcurrent Protectors with High Accuracy

Download MAX17561AUD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

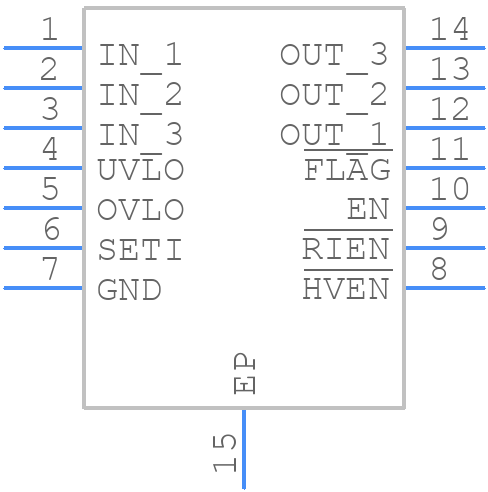

MAX17561AUD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17561AUD+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX17561AUD+
click to zoom
3D Models
MAX17561AUD+ - Analog Devices - 3D model - Small Outline Packages - MAX17561AUD+
click to zoom

MAX17561AUD+ Details

  • Manufacturer Part Number:

    MAX17561AUD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    TSSOP-EP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-12-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.7 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX17561AUD+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17561AUD+ should follow the guidelines provided in the datasheet, including keeping the input and output traces short and separate, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitors should be selected based on the input voltage range, ripple current, and ESR requirements. A good starting point is to use ceramic capacitors with a capacitance value of 10uF to 22uF, a voltage rating of 25V or higher, and an ESR of less than 100mΩ. The datasheet provides more detailed guidelines for capacitor selection.
  • The maximum output current of the MAX17561AUD+ is 1.5A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. It's recommended to check the datasheet for the output current vs. input voltage and output voltage graphs to determine the maximum output current for a specific application.
  • The MAX17561AUD+ has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the VIN pin. When the output current exceeds the overcurrent threshold, the device will shut down to prevent damage. The overcurrent threshold can be adjusted by connecting a resistor from the OC pin to the GND pin.
  • The EN pin is an active-high enable input that allows the user to turn the device on or off. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and the output is turned off. This pin can be used to implement power sequencing or to turn off the device during shutdown or standby modes.
