MAX17610ATC+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX17610ATC+ - REVERSE CURRENT PROTECTION, TDFN-12

Download MAX17610ATC+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

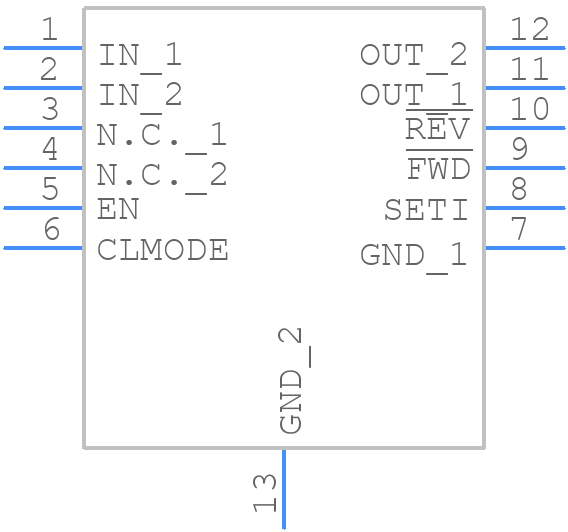

MAX17610ATC+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17610ATC+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - MAX17610ATC+
click to zoom
3D Models
MAX17610ATC+ - Analog Devices - 3D model - Small Outline No-lead - MAX17610ATC+
click to zoom

MAX17610ATC+ Details

  • Manufacturer Part Number:

    MAX17610ATC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-03-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX17610ATC+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17610ATC+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device away from high-current carrying traces and to use a low-ESR capacitor for the output capacitor.
  • To optimize the performance of the MAX17610ATC+, it is recommended to carefully select the input and output capacitors, choose the correct inductor value, and optimize the PCB layout. Additionally, the device's operating frequency, output voltage, and input voltage should be carefully selected to ensure optimal performance. It is also recommended to consult the application notes and evaluation kit documentation provided by Analog Devices Inc.
  • The MAX17610ATC+ has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device's junction temperature below 125°C. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and minimizing the device's power dissipation. The device's thermal resistance and power dissipation should be carefully calculated to ensure reliable operation.
  • To troubleshoot issues with the MAX17610ATC+, it is recommended to consult the device's datasheet and application notes. Common issues include incorrect input or output voltage, incorrect inductor value, and poor PCB layout. It is also recommended to use a oscilloscope to measure the device's input and output waveforms, and to consult the device's fault detection and protection features.
  • The MAX17610ATC+ is a switching regulator and can generate electromagnetic interference (EMI). To minimize EMI, it is recommended to use a shielded inductor, keep the device's switching frequency below 100MHz, and use a low-ESR output capacitor. Additionally, the device's PCB layout should be designed to minimize radiated emissions and conducted noise.
