MAX17610ATC+T - Analog Devices

Description: 4.5V to 60V, 1A Current Limiter with OV, UV, and Reverse Protection

Download MAX17610ATC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

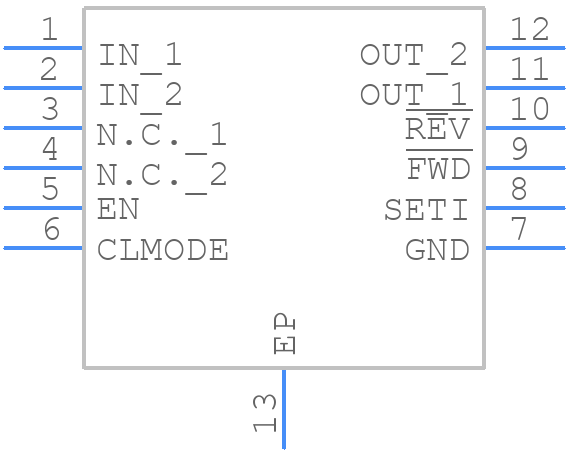

MAX17610ATC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17610ATC+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1C(2021)
click to zoom
3D Models
MAX17610ATC+T - Analog Devices - 3D model - Small Outline No-lead - TD1233+1C(2021)
click to zoom

MAX17610ATC+T Details

  • Manufacturer Part Number:

    MAX17610ATC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-03-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX17610ATC+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17610ATC+T can be found in the MAX17610 Evaluation Kit User Guide (UG1343) and the MAX17610 Layout Guidelines application note (AN8831). These resources provide detailed guidance on PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The MAX17610ATC+T is a highly configurable device that can be tailored to specific battery chemistries. The device's configuration is done through the I2C interface, and the specific settings will depend on the battery chemistry and application requirements. Refer to the MAX17610 datasheet and the MAX17610 Configuration and Programming Guide (UG1344) for more information on configuring the device for different battery chemistries.
  • The MAX17610ATC+T can support charging currents up to 10A, but the actual maximum charging current will depend on the specific application and the external components used. The device's charging current capability can be limited by the external power FET, sense resistors, and other components. Refer to the MAX17610 datasheet and the MAX17610 Evaluation Kit User Guide (UG1343) for more information on designing a charging circuit with the MAX17610ATC+T.
  • The MAX17610ATC+T has a built-in overvoltage protection (OVP) feature that can be enabled through the I2C interface. The OVP threshold can be set to a specific voltage level, and the device will automatically disconnect the charging source if the input voltage exceeds this threshold. Refer to the MAX17610 datasheet and the MAX17610 Configuration and Programming Guide (UG1344) for more information on implementing OVP with the MAX17610ATC+T.
  • The MAX17610ATC+T is specified to operate over a temperature range of -40°C to +125°C, making it suitable for use in high-temperature environments. However, the device's performance and reliability may be affected by extreme temperatures, and the user should ensure that the device is properly cooled and thermally managed to prevent overheating. Refer to the MAX17610 datasheet and the MAX17610 Thermal Management application note (AN8832) for more information on using the device in high-temperature environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17610ATC+T Overview

Use the download button to access the MAX17610ATC+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
