MAX17613AATP+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX17613AATP+ - POWER LOAD SW, -40 TO 125DEG C

Download MAX17613AATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

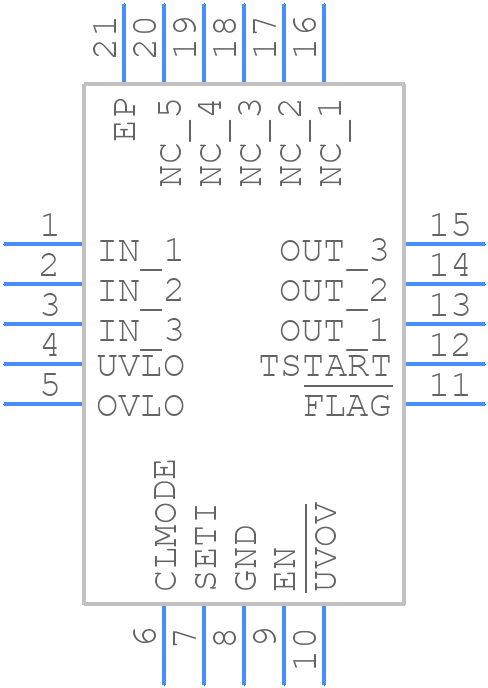

MAX17613AATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17613AATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20 lead
click to zoom
3D Models
MAX17613AATP+ - Analog Devices - 3D model - Quad Flat No-Lead - 20 lead
click to zoom

MAX17613AATP+ Details

  • Manufacturer Part Number:

    MAX17613AATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX17613AATP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17613AATP+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the device away from high-current carrying traces and to use a low-ESR capacitor for the output filter.
  • To optimize the performance of the MAX17613AATP+, you should consider factors such as the input voltage range, output voltage, and load current. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are properly selected. Additionally, you can use simulation tools such as SPICE models to simulate the device's performance and optimize the design.
  • The MAX17613AATP+ has a maximum junction temperature of 150°C. To ensure reliable operation, you should ensure that the device is operated within its recommended operating conditions, and that the PCB is designed to dissipate heat effectively. You can use thermal simulation tools to estimate the device's junction temperature and optimize the design.
  • To troubleshoot issues with the MAX17613AATP+, you should first consult the datasheet and application notes to ensure that the device is being used correctly. You can also use oscilloscopes and other measurement tools to debug the circuit. Common issues include incorrect input voltage, incorrect output voltage, and overheating. You can also contact Analog Devices' technical support for assistance.
  • The MAX17613AATP+ is designed to meet EMI and EMC standards, but you should still take precautions to minimize electromagnetic interference. You can use shielding, filtering, and other techniques to reduce EMI. You should also ensure that the device is operated within its recommended operating conditions, and that the PCB is designed to minimize radiation.
