MAX17634BATP+ - Analog Devices

Description: Switching Voltage Regulators For MAX17634A: 36V, 4.25A, High-Efficiency, Synchronous Step-Down DC-DC Converter with 3.3V Output Voltage; For MAX17634B: 36V, 4.25A, High-Efficiency, Synchronous Step-Down DC-DC Converter with 5V Output Voltage

Download MAX17634BATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

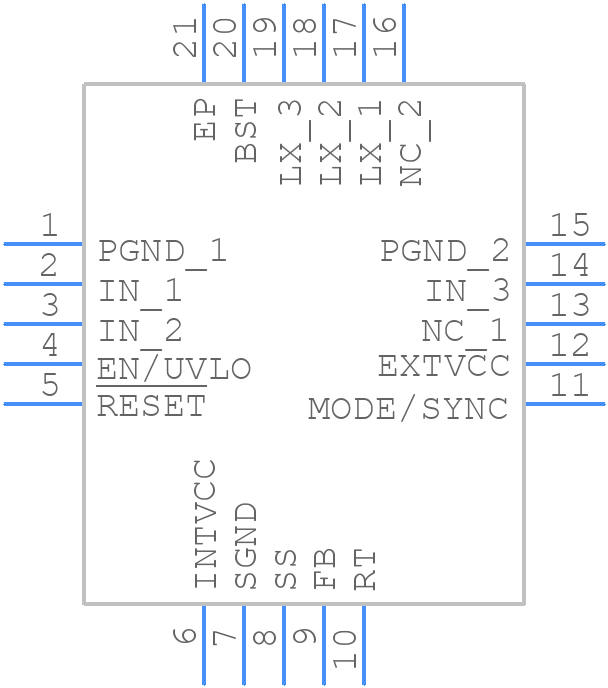

MAX17634BATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17634BATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044 +4C
click to zoom
3D Models
MAX17634BATP+ - Analog Devices - 3D model - Quad Flat No-Lead - T2044 +4C
click to zoom

MAX17634BATP+ Details

  • Manufacturer Part Number:

    MAX17634BATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-12-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS PFM CONTROL

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.25 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Peak Reflow Temperature (Cel):

    260

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30
