MAX17634CATP+ - Analog Devices

Description: DC/DC CONV, SYNC BUCK, 2.2MHZ, 125DEG C

Download MAX17634CATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

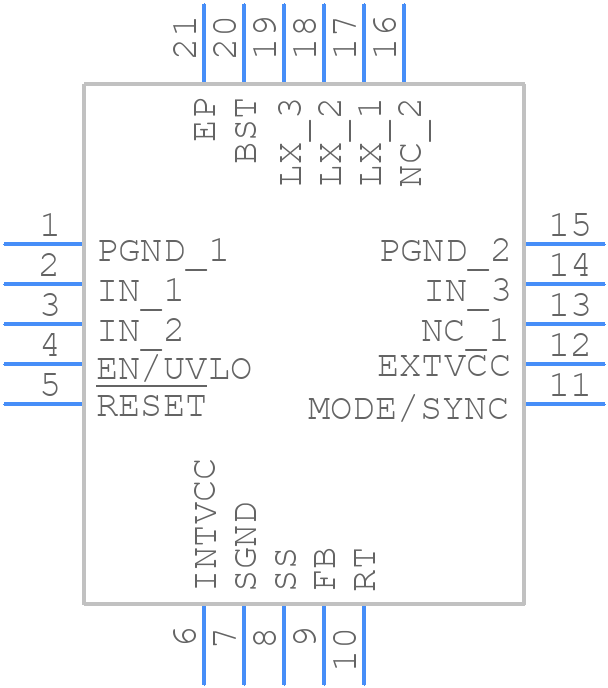

Symbol
MAX17634CATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17634CATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044 +4C
click to zoom
3D Models
MAX17634CATP+ - Analog Devices - 3D model - Quad Flat No-Lead - T2044 +4C
click to zoom

MAX17634CATP+ Details

  • Manufacturer Part Number:

    MAX17634CATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-12-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS PFM CONTROL

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.25 A

  • Output Voltage-Max:

    32.4 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    SQUARE

  • Peak Reflow Temperature (Cel):

    260

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX17634CATP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17634CATP+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device near the power source and to use a low-ESR capacitor for the input capacitor.
  • To optimize the performance of the MAX17634CATP+, you should consider factors such as the input voltage range, output voltage requirements, and load current. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are selected based on the device's requirements. Additionally, you may need to add external components such as resistors or inductors to optimize the performance of the device in your specific application.
  • The MAX17634CATP+ has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance and reliability. You should ensure that the device is mounted on a suitable heat sink, and that the PCB is designed to dissipate heat effectively. You should also consider the thermal resistance of the device and the PCB, and ensure that the device is operated within its recommended operating conditions.
  • To troubleshoot issues with the MAX17634CATP+, you should start by checking the input voltage and output voltage to ensure that they are within the recommended operating range. You should also check the input and output capacitors to ensure that they are properly connected and that they meet the device's requirements. Additionally, you should check the device's thermal performance and ensure that it is operated within its recommended operating conditions. If the issue persists, you may need to consult the device's datasheet or contact Analog Devices Inc for further assistance.
  • The MAX17634CATP+ is designed to meet the EMI and EMC requirements of most applications, but you should still take steps to minimize electromagnetic interference and ensure electromagnetic compatibility. You should ensure that the device is properly shielded, and that the PCB is designed to minimize radiation. You should also consider the use of filters or chokes to reduce electromagnetic interference, and ensure that the device is operated within its recommended operating conditions.
