MAX17651ATT+ - Analog Devices

Description: Linear Voltage Regulators 50mA, 60V, Low Iq Linear Regulator

Download MAX17651ATT+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

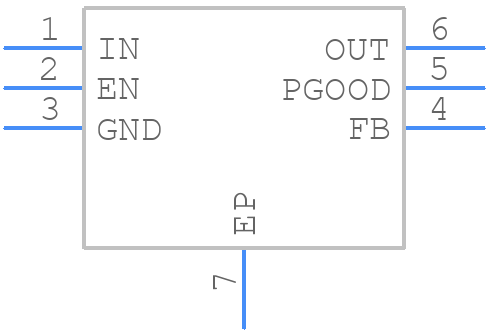

MAX17651ATT+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17651ATT+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - MAX17651ATT+
click to zoom
3D Models
MAX17651ATT+ - Analog Devices - 3D model - Small Outline No-lead - MAX17651ATT+
click to zoom

MAX17651ATT+ Details

  • Manufacturer Part Number:

    MAX17651ATT+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-LFCSP-3X3X0.75

  • Package Description:

    TDFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2014-12-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    1.1 V

  • Dropout Voltage1-Nom:

    0.56 V

  • JESD-30 Code:

    S-XDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.0017

  • Load Regulation-Max:

    1.2%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    58 V

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.12,38

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17651ATT+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17651ATT+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device near the power source and to use a low-ESR capacitor for the input capacitor.
  • To optimize the performance of the MAX17651ATT+, you should consider factors such as the input voltage range, output voltage requirements, and load current. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are properly selected. Additionally, you may need to adjust the compensation components and the feedback resistors to achieve the desired performance.
  • The MAX17651ATT+ has a maximum junction temperature of 150°C. To ensure reliable operation, you should ensure that the device is operated within its recommended operating conditions, and that it is properly cooled. You can use thermal vias, heat sinks, and other thermal management techniques to reduce the junction temperature and prevent overheating.
  • To troubleshoot issues with the MAX17651ATT+, you should start by checking the input voltage, output voltage, and load current. You should also verify that the device is properly configured and that the compensation components and feedback resistors are correctly selected. You can use oscilloscopes, multimeters, and other test equipment to diagnose issues such as oscillation, instability, or incorrect output voltage.
  • The MAX17651ATT+ is a switching regulator, and as such, it can generate electromagnetic interference (EMI). To minimize EMI, you should use a shielded layout, keep the switching node (SW) away from sensitive nodes, and use a common-mode choke or ferrite bead on the input and output lines. You should also ensure that the device is operated within its recommended operating conditions, and that it is properly filtered and decoupled.
