MAX17651ATT+T footprint, schematic symbol and 3D model by Analog Devices

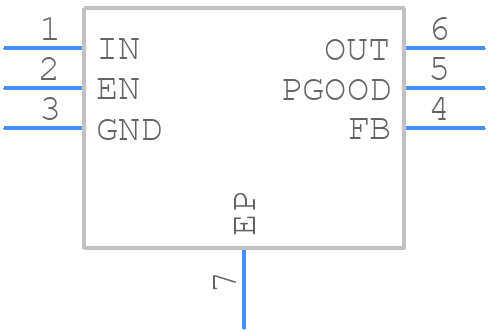

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX17651ATT+T
Part Number MAX17651ATT+T
Manufacturer Analog Devices
Pin Count 7
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 6 TDFN-EP
Released Date Jan 3, 2024
Last Modified Date Jan 15, 2025 12:42 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX17651ATT+T Details

Manufacturer Part Number:
MAX17651ATT+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
6-LFCSP-3X3X0.75
Package Description:
TDFN-6
Pin Count:
6
Manufacturer Package Code:
6-LFCSP-3X3X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2014-12-11
Manufacturer:
Analog Devices Inc
YTEOL:
9
Adjustability:
ADJUSTABLE
Dropout Voltage1-Max:
1.1 V
Dropout Voltage1-Nom:
0.56 V
JESD-30 Code:
S-XDSO-N6
JESD-609 Code:
e3
Length:
3 mm
Line Regulation-Max (%/V):
0.0017
Load Regulation-Max:
1.2%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current1-Max:
0.1 A
Output Voltage1-Max:
58 V
Output Voltage1-Min:
0.6 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC6,.12,38
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Technology:
BICMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
0.95 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

MAX17651ATT+T Frequently Asked Questions (FAQs)

A good PCB layout for the MAX17651ATT+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The input capacitors for the MAX17651ATT+T should be selected based on the input voltage range, output voltage, and desired ripple voltage. A general rule of thumb is to use capacitors with a capacitance value of 10uF to 22uF, and a voltage rating of 1.5 to 2 times the input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high reliability.
The MAX17651ATT+T is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation based on the ambient temperature to ensure reliable operation.
To troubleshoot issues with the MAX17651ATT+T, start by checking the input voltage, output voltage, and output current. Verify that the input capacitors are properly selected and placed, and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for any noise or oscillations on the output voltage. Consult the datasheet and application notes for more detailed troubleshooting guidelines.
Yes, the MAX17651ATT+T is suitable for high-reliability and automotive applications due to its high reliability, low dropout voltage, and high output current capability. However, it's essential to follow the recommended design guidelines, use proper PCB layout and component selection, and perform thorough testing and validation to ensure the device meets the specific application requirements.

Trust Checks

Community Provided

System Verified

Community Approved

MAX17651ATT+T Overview

Use the download button to access the MAX17651ATT+T schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
