MAX17670EATB+ - Analog Devices

Description: Switching Voltage Regulators 4.5V - 60V, 150mA Synchronous DC-DC and 5V, 50mA low noise LDO

Download MAX17670EATB+ Model

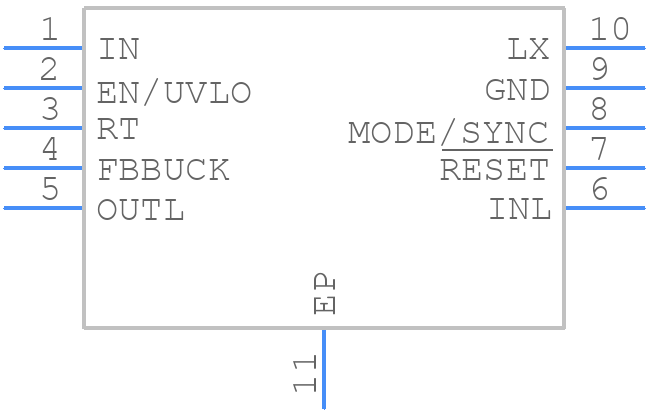

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX17670EATB+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1C
click to zoom
3D Models
MAX17670EATB+ - Analog Devices  - 3D model - Small Outline No-lead - T1033+1C
click to zoom

MAX17670EATB+ Details

  • Manufacturer Part Number:

    MAX17670EATB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-09-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.345 A

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17670EATB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17670EATB+ can be found in the MAX17670EATB+ Evaluation Kit User Guide (UG-1143) and the MAX17670EATB+ Layout Guidelines document, both available on the Analog Devices website. These resources provide detailed guidance on PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The MAX17670EATB+ can be configured for different input voltage ranges by adjusting the values of the external resistors R1 and R2, which set the input voltage range and the output voltage. The datasheet provides a table with recommended resistor values for different input voltage ranges. Additionally, the MAX17670EATB+ Evaluation Kit User Guide (UG-1143) provides a detailed example of how to configure the device for a specific input voltage range.
  • The maximum output current capability of the MAX17670EATB+ is 3A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. The datasheet provides a detailed description of the output current capability and the thermal derating curves to help designers determine the maximum output current for their specific application.
  • The MAX17670EATB+ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The datasheet provides a detailed description of the overcurrent protection circuit and the recommended component values. Additionally, the MAX17670EATB+ Evaluation Kit User Guide (UG-1143) provides an example of how to implement overcurrent protection in a typical application.
  • The typical startup time for the MAX17670EATB+ is around 1.5ms. However, the actual startup time may vary depending on the input voltage, output voltage, and external component values. The datasheet provides a detailed description of the startup time and the recommended external component values to minimize the startup time.
