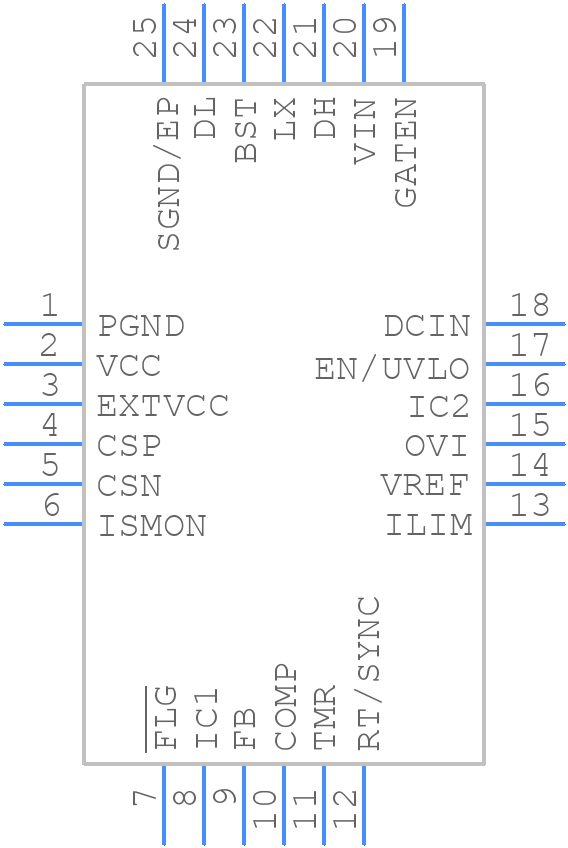

MAX17701ATG+ - Analog Devices

MAX17701ATG+ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the MAX17701ATG+?
  A good PCB layout for the MAX17701ATG+ involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the device. A 4-layer PCB with a dedicated power plane is recommended. Refer to the MAX17701 evaluation kit for a reference design.
• How do I select the right input capacitors for the MAX17701ATG+?
  Choose input capacitors with a low ESR (Equivalent Series Resistance) and a high ripple current rating. X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF, but larger values can be used for improved performance.
• What is the maximum ambient temperature for the MAX17701ATG+?
  The maximum ambient temperature for the MAX17701ATG+ is 105°C. However, the device can operate up to 125°C with derating. Refer to the datasheet for thermal derating curves.
• Can I use the MAX17701ATG+ in a high-vibration environment?
  Yes, the MAX17701ATG+ is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly soldered and the PCB is securely fastened to prevent mechanical stress. Additionally, consider using a conformal coating to protect the device from moisture and contaminants.
• How do I troubleshoot the MAX17701ATG+ if it's not functioning correctly?
  Start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input capacitors are correctly sized. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms. Refer to the datasheet and application notes for troubleshooting guidelines.
