- Part Number MAX17702ATG+
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - T2444 +5C
- Released Date Jul 2, 2021
- Last Modified Date Nov 3, 2023 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
MAX17702ATG+ Details
-
Manufacturer Part Number:
MAX17702ATG+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
24-LFCSP-4X4X0.75
-
Pin Count:
24
-
Manufacturer Package Code:
24-LFCSP-4X4X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2021-06-14
-
Manufacturer:
Analog Devices Inc
MAX17702ATG+ Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX17702ATG+ involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the IC. Additionally, it's recommended to use a 4-layer board with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
-
When selecting input capacitors for the MAX17702ATG+, consider the voltage rating, capacitance value, and ESR (Equivalent Series Resistance). A good starting point is to use 10uF to 22uF capacitors with a voltage rating of 25V or higher and an ESR of less than 100mΩ. X5R or X7R ceramic capacitors are good options.
-
The MAX17702ATG+ is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate within a narrower range (e.g., -20°C to +85°C) for optimal performance.
-
To troubleshoot issues with the MAX17702ATG+, start by checking the input voltage and ensuring it's within the recommended range. Verify that the EN pin is properly biased and that the input capacitors are properly connected. Check for any signs of overheating, and ensure that the output voltage is not overloaded. Use an oscilloscope to monitor the output voltage and input voltage to identify any anomalies.
-
Yes, the MAX17702ATG+ is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters and meets the required reliability standards.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX17702ATG+ Overview

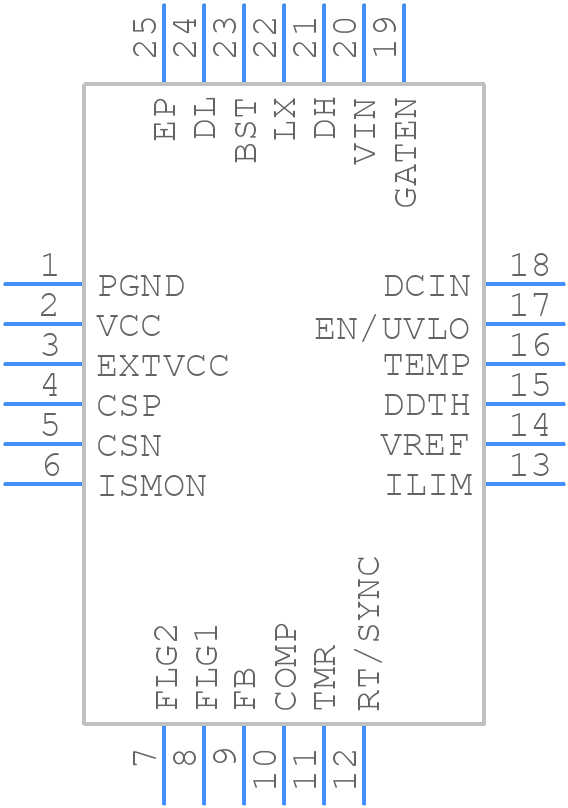

Use the download button to access the MAX17702ATG+ schematic symbol, PCB footprint, and 3D model.
