MAX17702ATG+T - Analog Devices

Description: 4.5V to 60V, Synchronous Step-Down Lead-Acid Battery Charger Controller

Download MAX17702ATG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

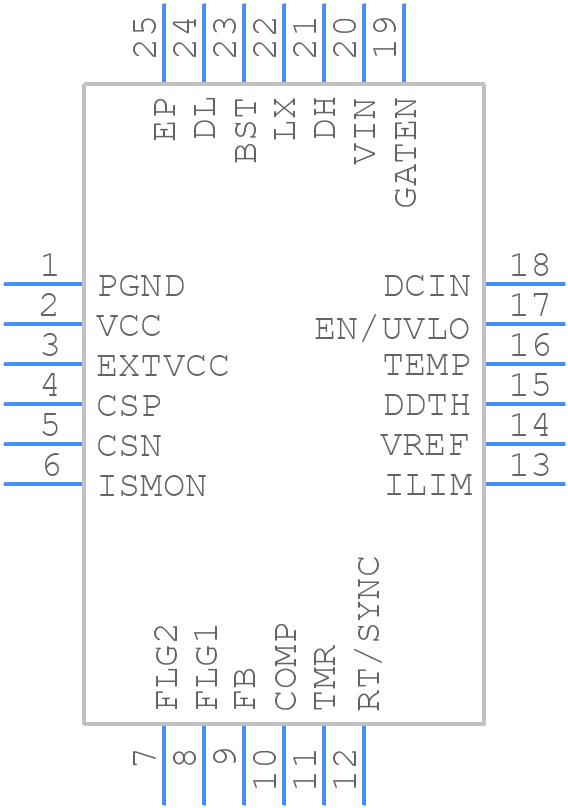

MAX17702ATG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17702ATG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444 +5C
click to zoom
3D Models
MAX17702ATG+T - Analog Devices - 3D model - Quad Flat No-Lead - T2444 +5C
click to zoom

MAX17702ATG+T Details

  • Manufacturer Part Number:

    MAX17702ATG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-06-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX17702ATG+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17702ATG+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device near the battery and keep the high-current paths away from sensitive analog circuits.
  • To optimize the performance of the MAX17702ATG+T, you should consider factors such as the input voltage range, output voltage requirements, and current draw. You should also ensure that the device is properly bypassed and decoupled, and that the layout is optimized for low noise and high efficiency. Additionally, you may need to adjust the compensation components and the soft-start timing to suit your specific application.
  • The MAX17702ATG+T has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 125°C for optimal performance and reliability. You should ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate in high-temperature environments.
  • To troubleshoot issues with the MAX17702ATG+T, you should start by checking the input voltage, output voltage, and current draw. You should also verify that the device is properly configured and that the compensation components are correct. If the issue persists, you may need to use an oscilloscope to analyze the waveforms and identify the root cause of the problem.
  • The MAX17702ATG+T is designed to meet EMI and EMC requirements, but you should still take steps to minimize electromagnetic interference and ensure electromagnetic compatibility. This includes using a shielded layout, minimizing loop areas, and using EMI filters or shielding on the input and output lines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17702ATG+T Overview

Use the download button to access the MAX17702ATG+T schematic symbol, PCB footprint, and 3D model.
