MAX17760ATC+ - Analog Devices

Description: 4.5V to 76V, 300mA, High-Efficiency, Synchronous Step-Down DC-DC Converter

Download MAX17760ATC+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

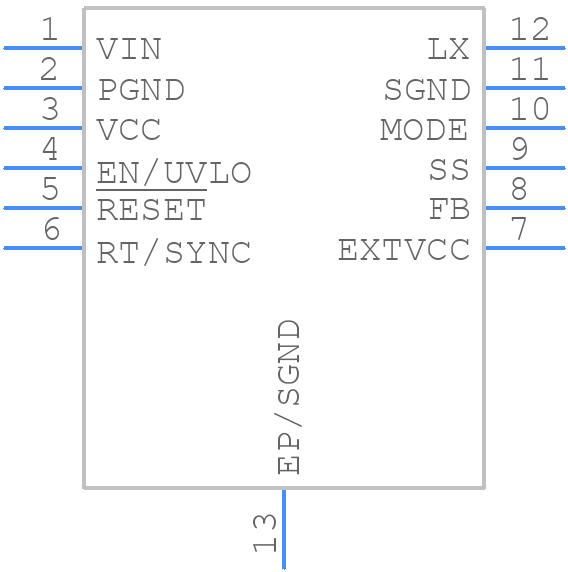

MAX17760ATC+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17760ATC+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1C
click to zoom
3D Models
MAX17760ATC+ - Analog Devices - 3D model - Small Outline No-lead - TD1233+1C
click to zoom

MAX17760ATC+ Details

  • Manufacturer Part Number:

    MAX17760ATC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-06-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    66.88 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    0.66 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17760ATC+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17760ATC+ involves keeping the high-current paths short and wide, using multiple vias to connect the GND pins to the ground plane, and placing the input capacitors close to the VIN pin. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the MAX17760 evaluation kit for a reference design.
  • To select the right inductor for the MAX17760ATC+, consider the following factors: inductance value, DC resistance, saturation current, and physical size. A good starting point is to use an inductor with an inductance value between 1µH to 4.7µH, a DC resistance less than 100mΩ, and a saturation current greater than the peak current of the application. Refer to the MAX17760 datasheet for more information.
  • The MAX17760ATC+ can handle input voltages up to 60V, but it's recommended to keep the input voltage below 50V to ensure reliable operation and to prevent damage to the device.
  • The MAX17760ATC+ output voltage can be configured using the FB pin and an external resistor divider network. The output voltage is determined by the ratio of the resistors and the internal reference voltage of 0.8V. Refer to the MAX17760 datasheet for the calculation formula and example configurations.
  • The EN pin is an active-high enable input that allows the user to turn the device on or off. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and enters a low-power shutdown mode.
