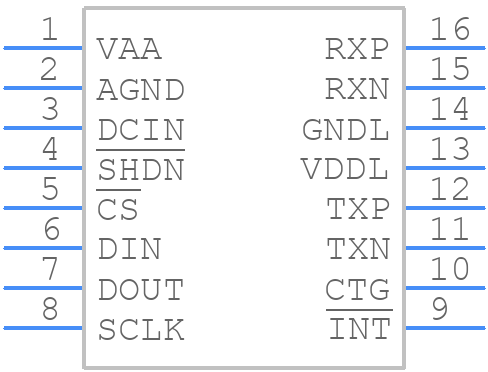

MAX17841BGUE+T - Analog Devices

MAX17841BGUE+T Details

• Manufacturer Part Number:

  MAX17841BGUE+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  16-TSSOP_4.4-4.4_MM

• Package Description:

  TSSOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  16-TSSOP_4.4-4.4_MM

• HTS Code:

  8542.31.00.30

• Date Of Intro:

  2013-09-27

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Boundary Scan:

  NO

• Bus Compatibility:

  SPI, UART

• Clock Frequency-Max:

  16.32 MHz

• Communication Protocol:

  ASYNC, BIT, BYTE, UART

• Data Transfer Rate-Max:

  0.25 MBps

• JESD-30 Code:

  R-PDSO-G16

• Length:

  5 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  6 mA

• Supply Voltage-Max:

  3.5 V

• Supply Voltage-Min:

  3.1 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.5 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
