MAX1792EUA25+ - Analog Devices

Description: MAX1792EUA25+, Low Dropout Voltage Regulator, Adj./Fixed 0.5A, 1.25 → 5 V, 2.5 V ±1%, 8-Pin Power μMAX

Download MAX1792EUA25+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

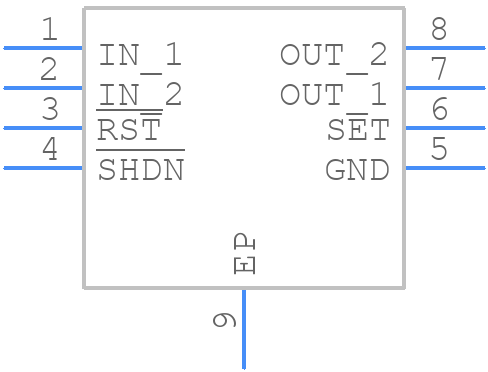

MAX1792EUA25+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1792EUA25+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U8E+2
click to zoom
3D Models
MAX1792EUA25+ - Analog Devices - 3D model - Small Outline Packages - U8E+2
click to zoom

MAX1792EUA25+ Details

  • Manufacturer Part Number:

    MAX1792EUA25+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO_EP-N/A

  • Package Description:

    POWER, MICRO MAX PACKAGE-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO_EP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-12-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    0.36 V

  • Dropout Voltage1-Nom:

    0.21 V

  • Input Voltage Absolute-Max:

    6 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Line Regulation-Max:

    0.0109%

  • Line Regulation-Max (%/V):

    0.15

  • Load Regulation-Max:

    0.025%

  • Load Regulation-Max(%):

    1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    1.25 V

  • Output Voltage1-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    3%

  • Width:

    3 mm

MAX1792EUA25+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX1792EUA25+ can be found in the MAX1792EUA25+ evaluation kit documentation or by contacting Analog Devices' technical support. A good layout should ensure proper thermal management, minimize noise, and follow the datasheet's guidelines for pin connections and decoupling.
  • To optimize the performance of the MAX1792EUA25+, consider the specific requirements of your application, such as input voltage, output current, and operating frequency. Consult the datasheet and application notes for guidance on component selection, PCB layout, and configuration. You may also want to consult with Analog Devices' technical support or use simulation tools to model and optimize your design.
  • The MAX1792EUA25+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink, thermal vias, or a thermally conductive PCB material. The datasheet provides thermal resistance values and guidelines for thermal management.
  • The MAX1792EUA25+ is a commercial-grade device, but Analog Devices offers other versions with enhanced reliability and automotive-grade options, such as the MAX1792EUA25+T or MAX1792EUA25+V. Consult the datasheet and Analog Devices' website for more information on the available options and their specifications.
  • To troubleshoot issues with the MAX1792EUA25+, start by consulting the datasheet and application notes for guidance on common issues and troubleshooting techniques. Use oscilloscopes, logic analyzers, or other diagnostic tools to identify the problem. If needed, contact Analog Devices' technical support for further assistance.
