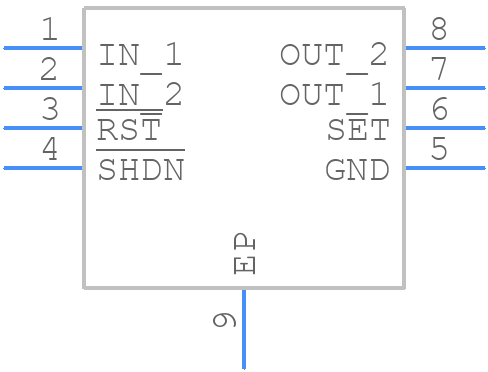

MAX1792EUA25+T - Analog Devices

MAX1792EUA25+T Details

• Manufacturer Part Number:

  MAX1792EUA25+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  8-MINI_SO_EP-N/A

• Package Description:

  POWER, MICRO MAX PACKAGE-8

• Pin Count:

  8

• Manufacturer Package Code:

  8-MINI_SO_EP-N/A

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2000-12-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Adjustability:

  FIXED/ADJUSTABLE

• Dropout Voltage1-Max:

  0.36 V

• Dropout Voltage1-Nom:

  0.21 V

• Input Voltage Absolute-Max:

  6 V

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Line Regulation-Max:

  0.0109%

• Line Regulation-Max (%/V):

  0.15

• Load Regulation-Max:

  0.025%

• Load Regulation-Max(%):

  1%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  5 V

• Output Voltage1-Min:

  1.25 V

• Output Voltage1-Nom:

  2.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP8,.19

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.1 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  3%

• Width:

  3 mm
