MAX18000AWT+ - Analog Devices

Description: 0.5V to 5.5V Input Voltage (VOUT > VIN + 0.2V) 1.8V Minimum Start-Up Voltage 2.5V to 5.5V (In 100mV Steps) Output Voltage 3.6A Cycle-by-Cycle Inductor Current Limit 512nA IQ Supply Current into the Output True-Shutdown Mode7nA Shutdown CurrentOutput Disconnects from Input with no Forward or Reverse CurrentOutput Short-Circuit Protection Thermal-Shutdown Protection95% Peak Efficiency with 90% or Higher Efficiency for Load > 20μA 1.07mm x 1.57mm, 0.5mm Pitch 6-Bump WLP-40°C to +125°C Operating Temperature Ran

Download MAX18000AWT+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

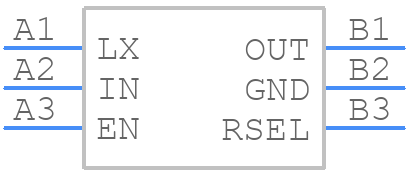

Symbol
MAX18000AWT+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX18000AWT+ - Analog Devices PCB footprint - BGA - BGA - W61M1Z+1
click to zoom
3D Models
MAX18000AWT+ - Analog Devices - 3D model - BGA - W61M1Z+1
click to zoom

MAX18000AWT+ Details

  • Manufacturer Part Number:

    MAX18000AWT+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-WLCSP-N/A

  • Package Description:

    WLP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-03-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.5 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-XBCS-B6

  • Length:

    1.568 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.6 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    2.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    CSP

  • Package Equivalence Code:

    BGA6,2X3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP SCALE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.068 mm

MAX18000AWT+ Frequently Asked Questions (FAQs)

  • The MAX18000AWT+ requires careful layout and placement to ensure proper operation. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • The output capacitor selection depends on the specific application requirements. A general guideline is to choose a capacitor with a low equivalent series resistance (ESR) and a high ripple current rating. The datasheet provides a recommended output capacitor value range, but it's essential to consider the specific operating conditions and load requirements.
  • The MAX18000AWT+ has a maximum input voltage rating of 5.5V, but it's essential to consider the specific application requirements and ensure that the input voltage does not exceed this rating to prevent damage to the device.
  • The MAX18000AWT+ operates within a recommended temperature range of -40°C to +125°C. Ensure proper thermal design, including heat sinking and airflow, to maintain the device within this range. Exceeding the recommended temperature range can affect device performance and reliability.
  • The recommended input voltage range for the MAX18000AWT+ is 2.7V to 5.5V. Operating outside this range may affect device performance, efficiency, and reliability.
