MAX18000AWT+T - Analog Devices

Description: 0.5V to 5.5V Input Voltage (VOUT > VIN + 0.2V) 1.8V Minimum Start-Up Voltage 2.5V to 5.5V (In 100mV Steps) Output Voltage 3.6A Cycle-by-Cycle Inductor Current Limit 512nA IQ Supply Current into the Output True-Shutdown Mode7nA Shutdown CurrentOutput Disconnects from Input with no Forward or Reverse CurrentOutput Short-Circuit Protection Thermal-Shutdown Protection95% Peak Efficiency with 90% or Higher Efficiency for Load > 20μA 1.07mm x 1.57mm, 0.5mm Pitch 6-Bump WLP-40°C to +125°C Operating Temperature Ran

Download MAX18000AWT+T Model

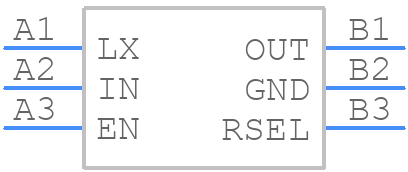

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX18000AWT+T - Analog Devices PCB footprint - BGA - BGA - 6-WLCSP-N/A _2023-1
click to zoom
3D Models
MAX18000AWT+T - Analog Devices  - 3D model - BGA - 6-WLCSP-N/A _2023-1
click to zoom

MAX18000AWT+T Details

  • Manufacturer Part Number:

    MAX18000AWT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-WLCSP-N/A

  • Package Description:

    WLP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-03-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.5 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-XBCS-B6

  • Length:

    1.568 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.6 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    2.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    CSP

  • Package Equivalence Code:

    BGA6,2X3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP SCALE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.068 mm
