MAX1830EEE+ - Analog Devices

Description: MAX1830EEE+, DC-DC Converter, Buck Controller, 3A, Adjustable, 1.1 → 5.5 V, 1000 kHz, 16-Pin QSOP

Download MAX1830EEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

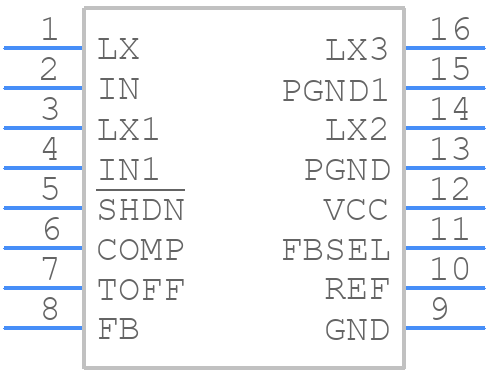

MAX1830EEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

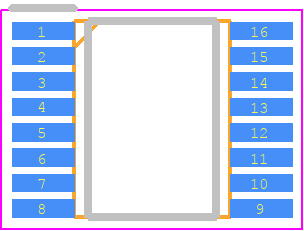

MAX1830EEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - QSOP-16
click to zoom
3D Models
MAX1830EEE+ - Analog Devices - 3D model - Small Outline Packages - QSOP-16
click to zoom

MAX1830EEE+ Details

  • Manufacturer Part Number:

    MAX1830EEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, 0.025 INCH PITCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2001-11-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT OFF TIME

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.1 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1.1 V

  • Output Voltage-Nom:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1830EEE+ Frequently Asked Questions (FAQs)

  • The MAX1830EEE+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides guidelines for capacitor selection, and additional information can be found in the application notes.
  • The MAX1830EEE+ is rated for operation from -40°C to +85°C. However, the device may be able to operate at higher temperatures with derating. It is recommended to consult the datasheet and application notes for more information on temperature derating.
  • The MAX1830EEE+ requires a controlled power-up and power-down sequence to ensure proper operation. It is recommended to follow the power-up and power-down guidelines provided in the datasheet, including ramping up the input voltage slowly and ensuring that the input voltage is stable before enabling the device.
  • The typical efficiency of the MAX1830EEE+ depends on the input voltage, output voltage, and load current. According to the datasheet, the device can achieve up to 95% efficiency in some operating conditions. However, actual efficiency may vary depending on the specific application and operating conditions.
