MAX187CCWE+ - Analog Devices

Description: +5V, Low-Power, 12-Bit Serial ADCs

Download MAX187CCWE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

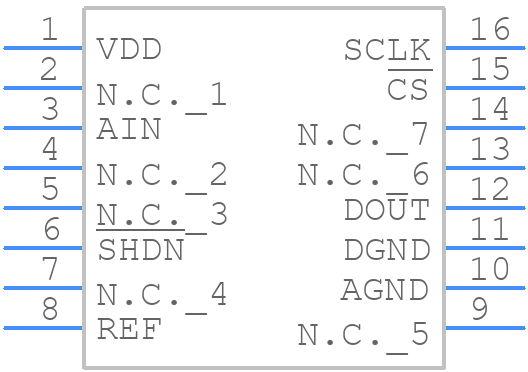

MAX187CCWE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX187CCWE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - W16+3
click to zoom
3D Models
MAX187CCWE+ - Analog Devices - 3D model - Small Outline Packages - W16+3
click to zoom

MAX187CCWE+ Details

  • Manufacturer Part Number:

    MAX187CCWE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-SOIC_W-300_MIL

  • Package Description:

    SSOP-20

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-SOIC_W-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1993-10-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.048 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Conversion Time-Max:

    10 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Analog In Channels:

    8

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.133 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX187CCWE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX187CCWE+ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The choice of input and output capacitors for the MAX187CCWE+ depends on the specific application and the desired performance. In general, low-ESR capacitors with a high ripple current rating are recommended. For the input capacitor, a value of 10uF to 22uF is typical, while for the output capacitor, a value of 22uF to 47uF is typical. It's also important to consider the capacitor's voltage rating, which should be at least 1.5 times the maximum input voltage.
  • The MAX187CCWE+ is rated for operation over a temperature range of -40°C to +85°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
  • To ensure proper power-up and power-down of the MAX187CCWE+, it's recommended to follow a controlled power-up sequence, where the input voltage is ramped up slowly (typically within 10ms) to the nominal operating voltage. During power-down, the input voltage should be ramped down slowly to prevent any voltage spikes or transients. Additionally, it's recommended to use a soft-start circuit to limit the inrush current during power-up.
  • The typical efficiency of the MAX187CCWE+ depends on the input voltage, output voltage, and load current. According to the datasheet, the device can achieve an efficiency of up to 95% at a 5V input, 3.3V output, and 500mA load current. However, the actual efficiency may vary depending on the specific application and operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX187CCWE+ Overview

Use the download button to access the MAX187CCWE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX18, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
