MAX192BCPP+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX192BCPP+ - Analogue to Digital Converter, Low Power, 10 bit, 133 kSPS, Differential, Single Ended, SPI, Single

Download MAX192BCPP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

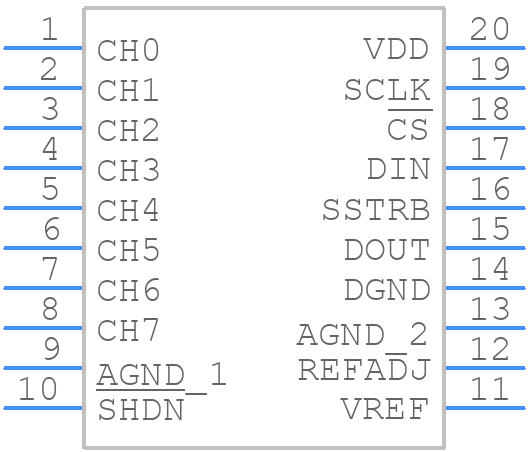

MAX192BCPP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

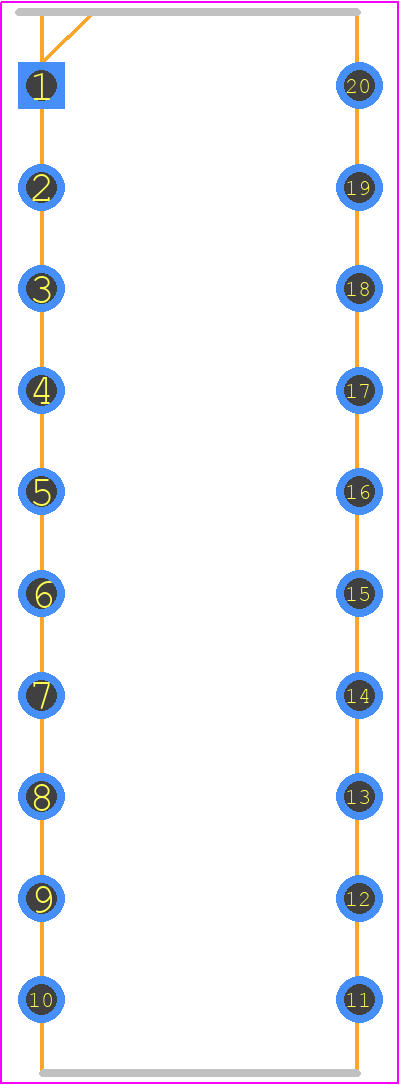

MAX192BCPP+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 20 pin dip
click to zoom
3D Models
MAX192BCPP+ - Analog Devices - 3D model - Dual-In-Line Packages - 20 pin dip
click to zoom

MAX192BCPP+ Details

  • Manufacturer Part Number:

    MAX192BCPP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-PDIP-300_MIL

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.048 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Conversion Time-Max:

    2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    26.16 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.133 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX192BCPP+ Frequently Asked Questions (FAQs)

  • The MAX192BCPP+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve thermal performance.
  • The MAX192BCPP+ has a high power dissipation rating, and proper thermal management is crucial to ensure reliable operation. It is recommended to use a heat sink or thermal pad to dissipate heat, and to ensure good airflow around the device. The thermal resistance of the package should also be taken into account when designing the system.
  • The recommended input and output capacitance for the MAX192BCPP+ depends on the specific application and operating conditions. However, as a general guideline, a 10uF to 22uF input capacitor and a 10uF to 47uF output capacitor are recommended to ensure stable operation and minimize noise.
  • The MAX192BCPP+ has built-in overvoltage and overcurrent protection, but additional protection measures may be necessary depending on the application. It is recommended to use external protection devices such as TVS diodes or fuses to protect the device from voltage transients and overcurrent conditions.
  • The MAX192BCPP+ has an operating temperature range of -40°C to +125°C, but the device may not operate within specifications at the extreme ends of this range. It is recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
