MAX192BEAP+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX192BEAP+ - Analogue to Digital Converter, Low Power, 10 bit, 133 kSPS, Differential, Single Ended, SPI, Single

Download MAX192BEAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

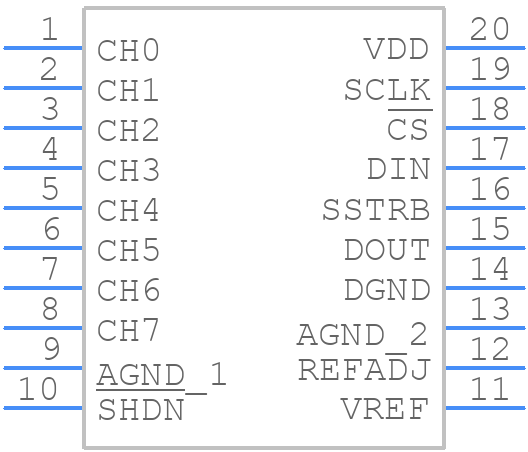

MAX192BEAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX192BEAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 20 SSOP
click to zoom
3D Models
MAX192BEAP+ - Analog Devices - 3D model - Small Outline Packages - 20 SSOP
click to zoom

MAX192BEAP+ Details

  • Manufacturer Part Number:

    MAX192BEAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Package Description:

    5.30 MM, 0.65 MM PITCH, ROHS COMPLIANT, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-05-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.048 V

  • Analog Input Voltage-Min:

    -2.048 V

  • Conversion Time-Max:

    2 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.133 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.99 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX192BEAP+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX192BEAP+ involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To optimize the performance of the MAX192BEAP+ in a high-temperature environment, it's recommended to use a heat sink, ensure good airflow, and reduce the power dissipation of the device. Additionally, the device's thermal shutdown feature can be used to prevent damage from overheating.
  • The maximum allowed input voltage for the MAX192BEAP+ is 36V, but it's recommended to operate the device within the specified input voltage range of 4.5V to 36V to ensure reliable operation and prevent damage.
  • To troubleshoot issues with the MAX192BEAP+, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the input and output capacitors are correctly sized. Use an oscilloscope to check for noise and oscillations, and consult the datasheet and application notes for guidance.
  • Yes, the MAX192BEAP+ can be used in a switching power supply design, but it's recommended to use a switching frequency above 100kHz to minimize the device's power loss and ensure reliable operation. Additionally, the device's output voltage should be set to a value that allows for sufficient headroom to accommodate the switching frequency and output ripple.
