MAX19790ETX+ - Analog Devices

Description: Maxim MAX19790ETX+, Variable Attenuator, 44.7dB, 4000MHz, 4.75 → 5.25 V 36-Pin TQFN

Download MAX19790ETX+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

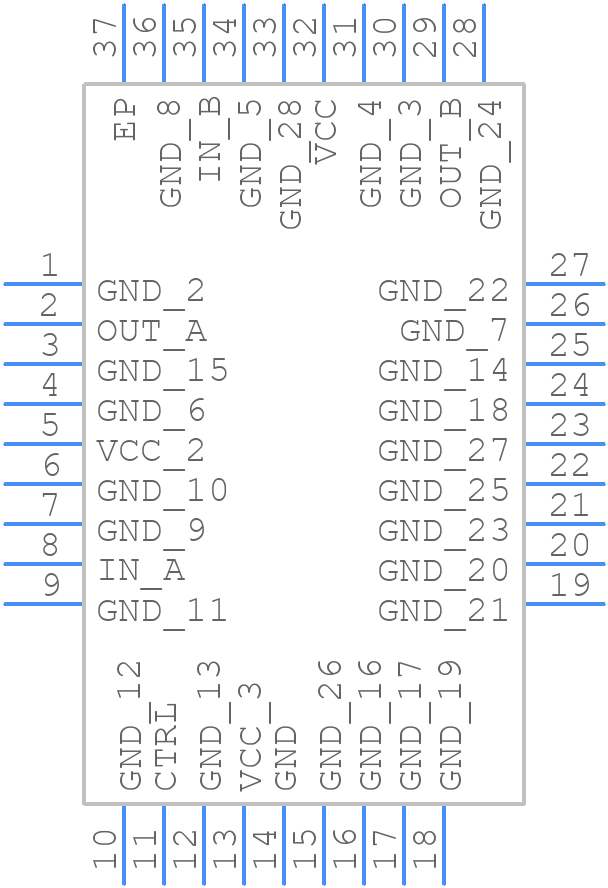

MAX19790ETX+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX19790ETX+ - Analog Devices PCB footprint - Other - Other - QFN50P600X600X80-37N
click to zoom
3D Models
MAX19790ETX+ - Analog Devices - 3D model - Other - QFN50P600X600X80-37N
click to zoom

MAX19790ETX+ Details

  • Manufacturer Part Number:

    MAX19790ETX+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    36-LFCSP-6X6X0.75

  • Pin Count:

    36

  • Manufacturer Package Code:

    36-LFCSP-6X6X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2010-03-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Attenuation-Nom:

    22 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • Insertion Loss-Max:

    7 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    36

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    250 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Supply Current-Max:

    9.5 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed
