MAX197ACAI+ - Analog Devices

Description: Maxim MAX197ACAI+, 12 bit Parallel ADC, 8-channel, 28-Pin SSOP

Download MAX197ACAI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

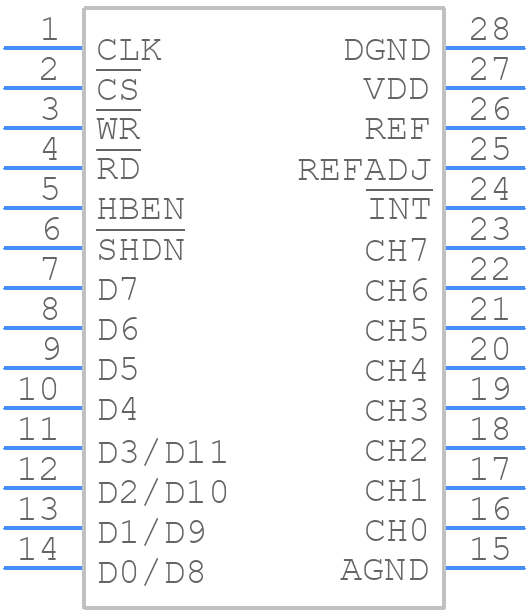

MAX197ACAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX197ACAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28 SSOP
click to zoom
3D Models
MAX197ACAI+ - Analog Devices - 3D model - Small Outline Packages - 28 SSOP
click to zoom

MAX197ACAI+ Details

  • Manufacturer Part Number:

    MAX197ACAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    0.209 INCH, ROHS COMPLIANT, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX197ACAI+ Frequently Asked Questions (FAQs)

  • The MAX197ACAI+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve thermal performance.
  • To optimize the performance of the MAX197ACAI+, it is recommended to carefully select the input and output capacitors, and to adjust the gain and bandwidth settings to match the specific requirements of your application. Additionally, ensuring proper power supply decoupling and noise reduction can also improve performance.
  • The MAX197ACAI+ has a maximum junction temperature of 150°C, and it is recommended to ensure that the device is operated within a safe temperature range to prevent overheating. This can be achieved by providing adequate heat sinking, using a thermal interface material, and ensuring good airflow around the device.
  • Common issues with the MAX197ACAI+ include oscillation, noise, and distortion. To troubleshoot these issues, it is recommended to check the layout and placement, ensure proper power supply decoupling, and verify that the input and output signals are within the recommended specifications. Additionally, using a scope or other diagnostic tools can help identify the root cause of the issue.
  • The MAX197ACAI+ has built-in ESD protection, but it is still recommended to take precautions to prevent ESD damage during handling and assembly. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD protection devices such as wrist straps or mats.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX197ACAI+ Overview

Use the download button to access the MAX197ACAI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX19, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
