MAX1989MUE+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX1989MUE+ - TEMPERATURE SENSOR, 5DEG C, TSSOP-16

Download MAX1989MUE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

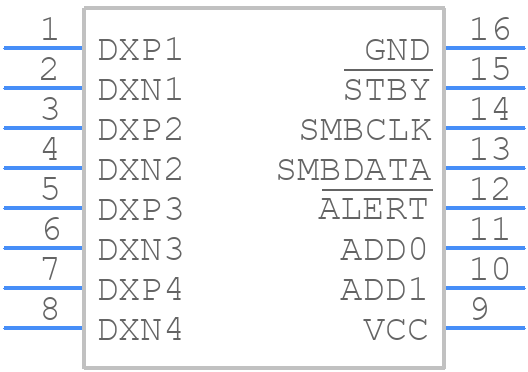

MAX1989MUE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1989MUE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U16+2
click to zoom
3D Models
MAX1989MUE+ - Analog Devices - 3D model - Small Outline Packages - U16+2
click to zoom

MAX1989MUE+ Details

  • Manufacturer Part Number:

    MAX1989MUE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    4.40 MM, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2000-07-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    4.4 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.01 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX1989MUE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX1989MUE+ is to keep the analog and digital grounds separate, and to use a solid ground plane for the analog section. Additionally, keep the input and output traces as short as possible and away from noise sources.
  • To optimize the performance of the MAX1989MUE+ in a noisy environment, use a low-pass filter at the input, and consider using a shielded enclosure to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI). Additionally, use a decoupling capacitor between the power supply and the device to reduce power supply noise.
  • The maximum operating temperature range for the MAX1989MUE+ is -40°C to +125°C. However, the device's performance may degrade at higher temperatures.
  • Yes, the MAX1989MUE+ is designed to operate in harsh environments, including high-vibration environments. However, it's recommended to follow proper PCB mounting and assembly techniques to ensure the device's reliability.
  • To troubleshoot common issues with the MAX1989MUE+, check the power supply voltage, input and output connections, and ensure that the device is properly configured. Additionally, use an oscilloscope to check for noise and distortion in the output signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1989MUE+ Overview

Use the download button to access the MAX1989MUE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX19, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
