MAX20006AFOD/VY+T - Analog Devices

Description: Switching Voltage Regulators 36V, 220kHz to 2.2MHz, 4A/6A/8A Fully Integrated Step-Down Converters

Download MAX20006AFOD/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

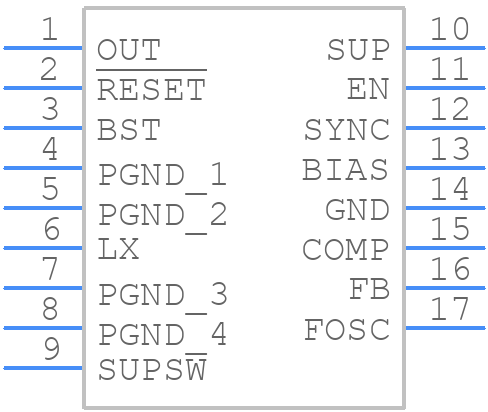

MAX20006AFOD/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20006AFOD/VY+T - Analog Devices PCB footprint - Other - Other - F173A3FY+1
click to zoom
3D Models
MAX20006AFOD/VY+T - Analog Devices - 3D model - Other - F173A3FY+1
click to zoom

MAX20006AFOD/VY+T Details

  • Manufacturer Part Number:

    MAX20006AFOD/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    17-LFCSP_SS-3.5X3.5X0.70

  • Package Description:

    FC2QFN-17

  • Pin Count:

    17

  • Manufacturer Package Code:

    17-LFCSP_SS-3.5X3.5X0.70

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1V TO 10V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PQCC-N17

  • JESD-609 Code:

    e3

  • Length:

    3.75 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    12.5 A

  • Output Voltage-Max:

    3.37 V

  • Output Voltage-Min:

    3.23 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC17,.14X.15,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.75 mm

  • Supply Current-Max (Isup):

    6000 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX20006AFOD/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20006AFOD/VY+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20006AFOD/VY+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output signals. A good starting point is to use 1uF to 10uF capacitors for both input and output.
  • The MAX20006AFOD/VY+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • The MAX20006AFOD/VY+T requires a single 3.3V or 5V power supply. The device should be powered from a clean, low-noise power source, and the power supply pins should be decoupled with 0.1uF to 1uF capacitors. The bias voltage should be set to the desired level using an external resistor divider network or a dedicated bias voltage source.
  • The typical startup time for the MAX20006AFOD/VY+T is around 1ms to 2ms, depending on the input voltage and the output load. However, this time can vary depending on the specific application and the device's configuration.
