MAX20008AFOD/VY+ - Analog Devices

Description: Switching Voltage Regulators 36V, 220kHz to 2.2MHz, 4A/6A/8A Fully integrated step down converter

Download MAX20008AFOD/VY+ Model

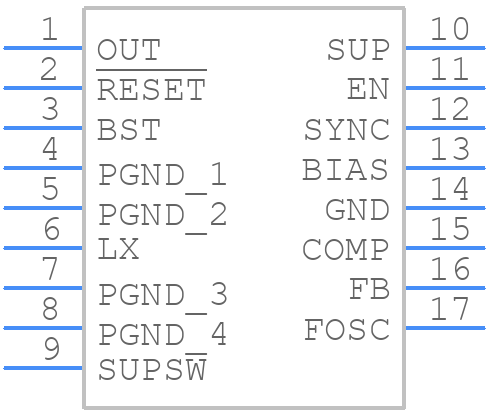

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX20008AFOD/VY+ - Analog Devices PCB footprint - Other - Other - F173A3FY+1
click to zoom
3D Models
MAX20008AFOD/VY+ - Analog Devices  - 3D model - Other - F173A3FY+1
click to zoom

MAX20008AFOD/VY+ Details

  • Manufacturer Part Number:

    MAX20008AFOD/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    17-LFCSP_SS-3.5X3.5X0.70

  • Package Description:

    FC2QFN-17

  • Pin Count:

    17

  • Manufacturer Package Code:

    17-LFCSP_SS-3.5X3.5X0.70

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 1V TO 10V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PQCC-N17

  • JESD-609 Code:

    e3

  • Length:

    3.75 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    17.5 A

  • Output Voltage-Max:

    3.37 V

  • Output Voltage-Min:

    3.23 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC17,.14X.15,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.75 mm

  • Supply Current-Max (Isup):

    8000 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX20008AFOD/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20008AFOD/VY+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20008AFOD/VY+ depends on the specific application requirements. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V to 25V are recommended. The capacitance value should be chosen based on the desired ripple voltage and output voltage. A minimum capacitance of 1uF is recommended for the input capacitor, and 2.2uF to 4.7uF for the output capacitor.
  • The MAX20008AFOD/VY+ has an operating temperature range of -40°C to +125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's essential to ensure that the device does not exceed its maximum junction temperature (Tj) of 150°C.
  • To ensure stability and prevent oscillation, it's essential to follow the layout guidelines, use the recommended capacitors, and ensure that the input and output voltage rails are well-regulated. Additionally, the device should be operated within its recommended operating conditions, and the output should not be overloaded. If oscillation occurs, it may be necessary to add a small series resistor (e.g., 1Ω to 10Ω) in the output stage.
  • The recommended input voltage range for the MAX20008AFOD/VY+ is 2.7V to 5.5V. However, the device can operate with input voltages as low as 2.3V, but with reduced performance and efficiency. It's essential to ensure that the input voltage is within the recommended range to ensure optimal performance and reliability.
