MAX20029BATIF/V+ - Analog Devices

Description: Automotive Quad/Triple Low-Voltage Step-Down DC-DC Converters

Download MAX20029BATIF/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

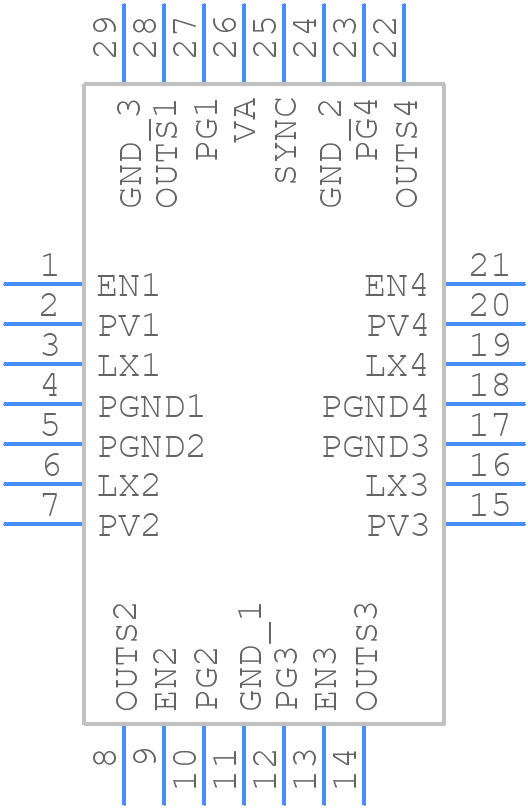

MAX20029BATIF/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20029BATIF/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855+5
click to zoom
3D Models
MAX20029BATIF/V+ - Analog Devices - 3D model - Quad Flat No-Lead - T2855+5
click to zoom

MAX20029BATIF/V+ Details

  • Manufacturer Part Number:

    MAX20029BATIF/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-5X5X0.75

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-5X5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX20029BATIF/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX20029BATIF/V+ is to use a 4-layer board with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • To optimize the performance of the MAX20029BATIF/V+ in a high-temperature environment, it's recommended to use a heat sink to dissipate heat, and to ensure good airflow around the device. Additionally, the device's thermal shutdown feature can be enabled to prevent damage from overheating.
  • The maximum input voltage that the MAX20029BATIF/V+ can handle is 42V, but it's recommended to operate the device within the specified input voltage range of 4.5V to 36V to ensure reliable operation.
  • To troubleshoot issues with the MAX20029BATIF/V+, it's recommended to check the input voltage, output voltage, and current consumption using an oscilloscope or a multimeter. Additionally, checking the device's thermal shutdown and overcurrent protection features can help identify the root cause of the issue.
  • Yes, the MAX20029BATIF/V+ can be used in a redundant power supply configuration. The device's built-in ORing diode and overcurrent protection features make it suitable for use in redundant power supply applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX20029BATIF/V+ Overview

Use the download button to access the MAX20029BATIF/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Power Management Circuits
