MAX20039BATPB/VY+ - Analog Devices

Description: Automotive, 2V to 36V, 2.2MHz, 0.6A/1.2A Buck-Boost Converters with IntegratedH-Bridge Architecture

Download MAX20039BATPB/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

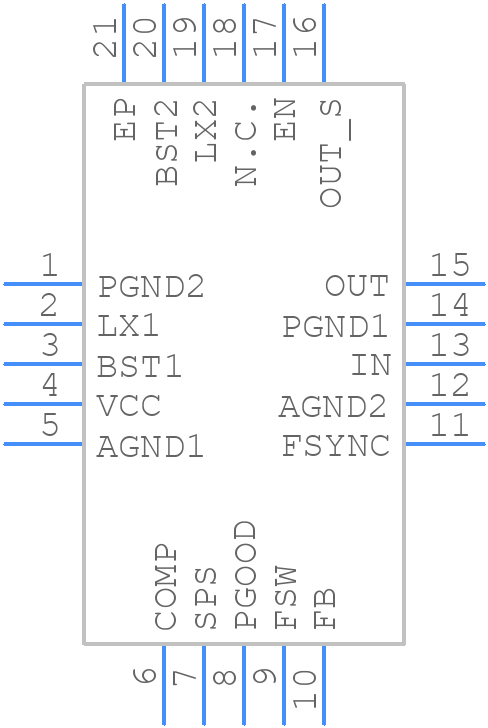

Symbol
MAX20039BATPB/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20039BATPB/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX20039BATPB/VY+sss
click to zoom
3D Models
MAX20039BATPB/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX20039BATPB/VY+sss
click to zoom

MAX20039BATPB/VY+ Details

  • Manufacturer Part Number:

    MAX20039BATPB/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP_SS-4X4X0.75

  • Package Description:

    SWTQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP_SS-4X4X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    PFM CONTROL TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    4 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2350 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX20039BATPB/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20039 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The MAX20039 requires a 3.3V or 5V power supply, and the EN pin should be tied to a logic high to enable the device. The device also requires a 0.1uF decoupling capacitor between the VIN pin and the GND pin. Additionally, the device should be configured according to the application requirements, such as setting the output voltage and current limit.
  • The MAX20039 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the thermal management section of the datasheet for more information.
  • Yes, the MAX20039 is AEC-Q100 qualified and is suitable for use in high-reliability and automotive applications. However, it's recommended to consult the device's reliability report and to perform additional testing and validation to ensure the device meets the specific requirements of the application.
  • To troubleshoot issues with the MAX20039, start by checking the power supply and input voltage, then verify the device's configuration and output voltage settings. Use an oscilloscope to monitor the output voltage and current, and check for any signs of overheating or damage. Consult the datasheet and application notes for more troubleshooting guidance.
