MAX20050ATC/V+ - Analog Devices

Description: 2A Synchronous -Buck LED Drivers with Integrated MOSFETs

Download MAX20050ATC/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

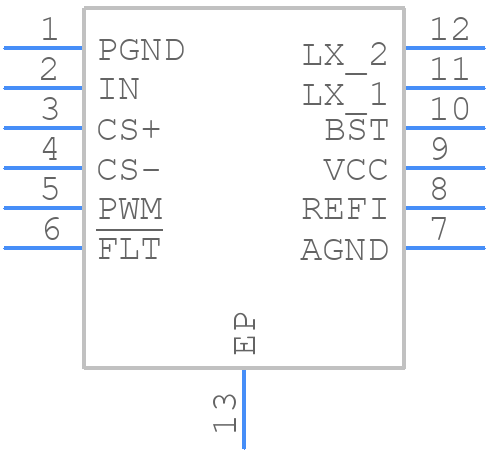

MAX20050ATC/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20050ATC/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-LFCSP-3X3X0.75_2023
click to zoom
3D Models
MAX20050ATC/V+ - Analog Devices - 3D model - Small Outline No-lead - 12-LFCSP-3X3X0.75_2023
click to zoom

MAX20050ATC/V+ Details

  • Manufacturer Part Number:

    MAX20050ATC/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    0.002 MHz

MAX20050ATC/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20050ATC/V+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input and output capacitors should be chosen based on the specific application requirements. For the input capacitor, a low-ESR ceramic capacitor with a value between 1uF to 10uF is recommended. For the output capacitor, a low-ESR ceramic or film capacitor with a value between 10uF to 100uF is recommended. The capacitor values should be chosen to ensure that the device meets the required ripple rejection and transient response.
  • The MAX20050ATC/V+ can operate at ambient temperatures up to 125°C, but the device's performance and reliability may be affected at higher temperatures. It's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • Yes, the MAX20050ATC/V+ is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard for automotive applications and is designed to meet the requirements of high-reliability industries such as aerospace, defense, and medical devices.
  • To ensure that the MAX20050ATC/V+ meets the required EMC standards, it's recommended to follow proper PCB layout and design guidelines, use shielding and filtering components, and ensure that the device is properly decoupled and bypassed. Additionally, the device should be tested and certified to meet the relevant EMC standards such as CISPR 25 and IEC 61000-4.
