A good PCB layout for the MAX20051AAUD/V+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
To configure the MAX20051AAUD/V+T for a specific application, you'll need to consider factors such as the input voltage range, output voltage, and current requirements. You can use the device's adjustable output voltage and current limit features to tailor it to your application. Additionally, you may need to add external components, such as capacitors and resistors, to optimize performance.
The MAX20051AAUD/V+T has a maximum junction temperature of 150°C. To ensure reliable operation in high-temperature environments, you should consider the device's thermal resistance, power dissipation, and ambient temperature. You can use thermal design techniques, such as heat sinking and thermal interface materials, to reduce the device's temperature and prevent overheating.
To troubleshoot common issues with the MAX20051AAUD/V+T, you should first consult the datasheet and application notes for guidance. You can also use debugging tools, such as oscilloscopes and logic analyzers, to identify the root cause of the issue. Additionally, you may need to perform tests, such as output voltage measurements and current limit checks, to isolate the problem.
Yes, the MAX20051AAUD/V+T is susceptible to electromagnetic interference (EMI) and electromagnetic compatibility (EMC) issues. To ensure compliance with regulatory standards, you should follow proper PCB layout and design practices, such as using shielding, filtering, and grounding techniques. Additionally, you may need to perform EMI/EMC testing and certification to ensure compliance with standards such as FCC, CE, and CISPR.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MAX20051AAUD/V+T Overview

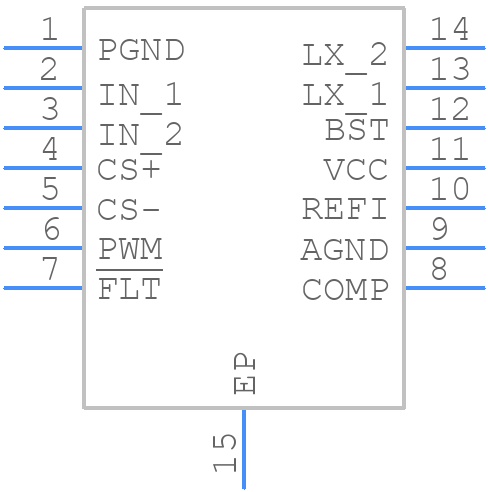

Use the download button to access the MAX20051AAUD/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20,
or try a keyword search, such as Display Drivers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
