MAX20076ATCA/V+ - Analog Devices

Description: 36V, 600mA/1.2A Mini Buck Converter

Download MAX20076ATCA/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

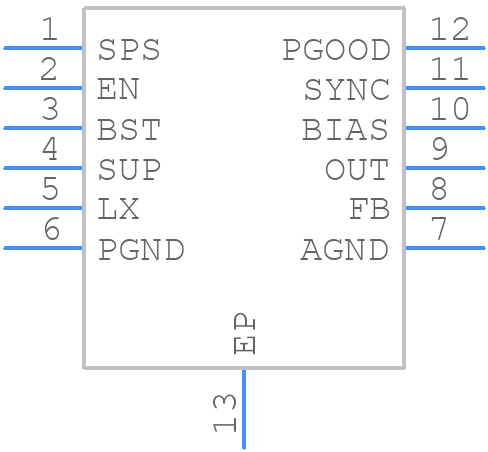

MAX20076ATCA/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20076ATCA/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+2C
click to zoom
3D Models
MAX20076ATCA/V+ - Analog Devices - 3D model - Small Outline No-lead - TD1233+2C
click to zoom

MAX20076ATCA/V+ Details

  • Manufacturer Part Number:

    MAX20076ATCA/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-01-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2275 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20076ATCA/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX20076ATCA/V+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. The device's exposed pad should be connected to a solid ground plane to ensure good thermal performance. Additionally, the input and output traces should be kept short and away from noise sources.
  • To optimize the performance of the MAX20076ATCA/V+, ensure that the input and output capacitors are properly selected and placed close to the device. Also, use a low-impedance power supply, and decouple the device's power pins with high-quality capacitors. Additionally, minimize the length of the input and output traces, and use shielding to reduce electromagnetic interference (EMI).
  • The maximum operating temperature range for the MAX20076ATCA/V+ is -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C, and it's recommended to operate it within the -20°C to +70°C range for optimal performance.
  • To troubleshoot issues with the MAX20076ATCA/V+, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the input and output capacitors are properly connected and of the correct value. Use an oscilloscope to check the input and output waveforms, and ensure that the device is not overheating. If the issue persists, consult the datasheet and application notes for further guidance.
  • Yes, the MAX20076ATCA/V+ is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
