MAX20076ATCA/V+T - Analog Devices

Description: 36V, 600mA/1.2A Mini Buck Converter

Download MAX20076ATCA/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

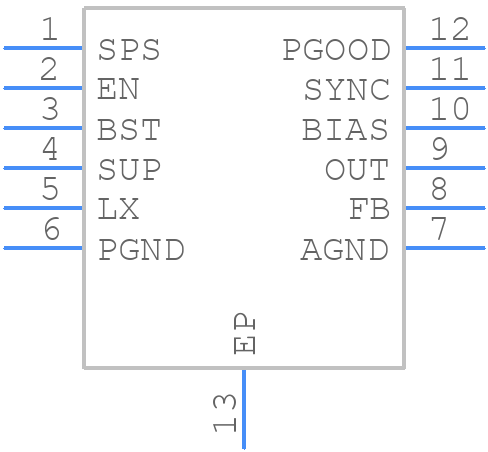

Symbol
MAX20076ATCA/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20076ATCA/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+2C
click to zoom
3D Models
MAX20076ATCA/V+T - Analog Devices - 3D model - Small Outline No-lead - TD1233+2C
click to zoom

MAX20076ATCA/V+T Details

  • Manufacturer Part Number:

    MAX20076ATCA/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-01-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2275 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20076ATCA/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20076ATCA/V+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device's exposed pad should be connected to a solid ground plane to improve thermal performance.
  • The input and output capacitors for the MAX20076ATCA/V+T should be selected based on the specific application requirements. A general guideline is to use X7R or X5R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be chosen to ensure that the impedance of the capacitor is less than the impedance of the input or output at the switching frequency. A good starting point is to use 10uF to 22uF capacitors for both input and output.
  • The MAX20076ATCA/V+T can operate in an ambient temperature range of -40°C to +125°C. However, the device's junction temperature should not exceed 150°C. The device's thermal performance can be improved by using a heat sink or a thermal pad, and by ensuring good airflow around the device.
  • The MAX20076ATCA/V+T should be powered up and powered down in a controlled manner to prevent damage to the device. A soft-start circuit can be used to limit the inrush current during power-up. The device's enable pin should be driven high after the input voltage has reached its nominal value, and the device's output voltage should be monitored to ensure that it is within the specified range. During power-down, the enable pin should be driven low before the input voltage is removed.
  • The recommended input voltage range for the MAX20076ATCA/V+T is 4.5V to 14V. However, the device can operate with input voltages as low as 4V and as high as 16V, but with reduced performance and efficiency. The input voltage should be well-regulated and free of noise to ensure optimal performance.
