MAX20076DATCA/V+ - Analog Devices

Description: 36V, 600mA/1.2A Mini Buck Converter

Download MAX20076DATCA/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

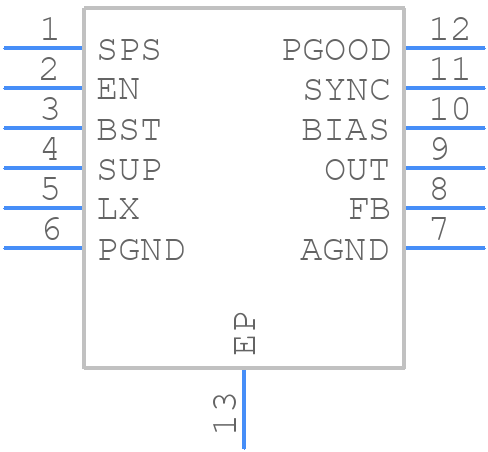

MAX20076DATCA/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20076DATCA/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+2C
click to zoom
3D Models
MAX20076DATCA/V+ - Analog Devices - 3D model - Small Outline No-lead - TD1233+2C
click to zoom

MAX20076DATCA/V+ Details

  • Manufacturer Part Number:

    MAX20076DATCA/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-02-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    5.147 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2275 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20076DATCA/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20076DATCA/V+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. A 4-layer PCB with a dedicated power plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To optimize the performance of the MAX20076DATCA/V+ in a noisy environment, use proper shielding, grounding, and decoupling techniques. Ensure that the device is placed away from noise sources, and use a low-pass filter or a ferrite bead to filter out high-frequency noise. Additionally, use a high-quality power supply with low ripple and noise, and consider using a shielded enclosure for the entire system.
  • The MAX20076DATCA/V+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C. It's essential to ensure proper thermal management and heat dissipation to maintain reliable operation.
  • Yes, the MAX20076DATCA/V+ is AEC-Q100 qualified, making it suitable for automotive applications. However, it's essential to ensure that the device meets the specific requirements of the application, including temperature range, voltage supply, and electromagnetic compatibility (EMC). Additionally, the device should be used in accordance with the guidelines provided in the datasheet and application notes.
  • To troubleshoot issues with the MAX20076DATCA/V+, start by reviewing the datasheet and application notes to ensure that the device is used correctly. Check the power supply, grounding, and decoupling to ensure that they meet the recommended specifications. Use a oscilloscope or logic analyzer to monitor the device's inputs and outputs, and check for any signs of noise, oscillation, or malfunction. If the issue persists, contact Analog Devices' technical support for further assistance.
