MAX20076DATCA/V+T - Analog Devices

Description: Switching Voltage Regulators 36V, 1.2A, 2.2MHz Mini Buck Converter with 5uA Iq

Download MAX20076DATCA/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

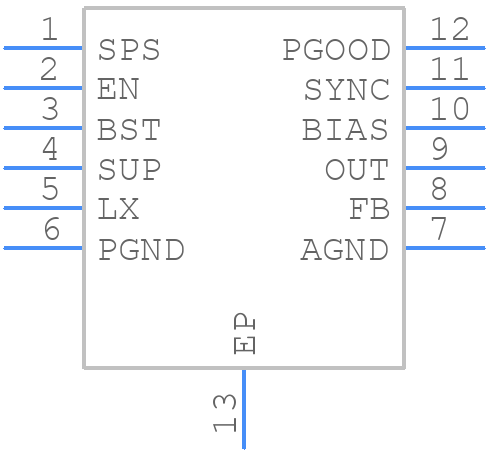

MAX20076DATCA/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20076DATCA/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+2C
click to zoom
3D Models
MAX20076DATCA/V+T - Analog Devices - 3D model - Small Outline No-lead - TD1233+2C
click to zoom

MAX20076DATCA/V+T Details

  • Manufacturer Part Number:

    MAX20076DATCA/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-02-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    5.147 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.01 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2275 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20076DATCA/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20076 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and load.
  • The input capacitor should be chosen based on the input voltage range, ripple current, and ESR requirements. A ceramic capacitor with a value between 1uF to 10uF and a voltage rating of at least 2x the maximum input voltage is recommended. The capacitor should also have a low ESR to minimize voltage ripple and ensure stable operation.
  • The maximum output current capability of the MAX20076 is 2A, but it's recommended to derate the output current based on the ambient temperature and the device's thermal performance. The device's thermal performance can be improved by using a heat sink or a thermally conductive PCB material.
  • The MAX20076 has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the VIN pin. The device will automatically shut down if the output current exceeds the programmed limit. The overcurrent limit can be programmed using an external resistor connected to the OC pin.
  • The recommended startup sequence for the MAX20076 is to first apply the input voltage, followed by the enable signal. This ensures that the device is properly biased and configured before the output voltage is enabled.
