MAX20077ATCD2/VY+ - Analog Devices

Description: Switching Voltage Regulators HV 2A low Iq mini Buck converter

Download MAX20077ATCD2/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

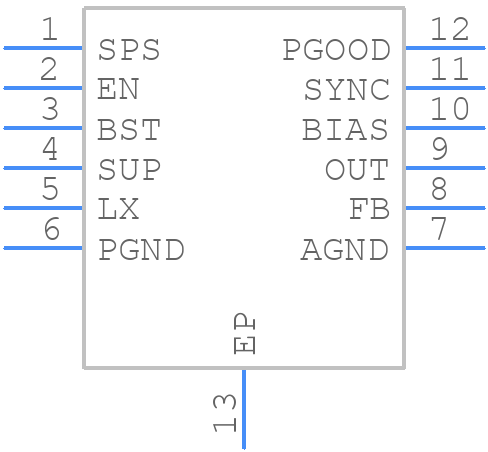

Symbol
MAX20077ATCD2/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20077ATCD2/VY+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233Y+2C
click to zoom
3D Models
MAX20077ATCD2/VY+ - Analog Devices - 3D model - Small Outline No-lead - TD1233Y+2C
click to zoom

MAX20077ATCD2/VY+ Details

  • Manufacturer Part Number:

    MAX20077ATCD2/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP_SS-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP_SS-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.0075 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    440 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20077ATCD2/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20077ATCD2/VY+ should follow the guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to reduce noise and improve signal integrity.
  • The selection of input and output capacitors for the MAX20077ATCD2/VY+ depends on the specific application and operating conditions. In general, it's recommended to use low-ESR capacitors with a value of 1uF to 10uF for the input capacitors and 10uF to 22uF for the output capacitors. The capacitors should also be rated for the maximum operating voltage and temperature range of the device.
  • The MAX20077ATCD2/VY+ has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • To troubleshoot common issues with the MAX20077ATCD2/VY+, it's recommended to follow a systematic approach, including checking the input voltage, output load, and PCB layout. Additionally, using an oscilloscope to measure the output voltage and current can help identify the root cause of the issue. In some cases, it may be necessary to consult the datasheet or contact Analog Devices' technical support for further assistance.
  • Yes, the MAX20077ATCD2/VY+ is suitable for use in high-reliability and automotive applications. The device is AEC-Q100 qualified and meets the requirements for automotive applications. However, it's recommended to consult the datasheet and Analog Devices' application notes for specific guidance on using the device in these applications.
