MAX20084ATEA/VY+T - Analog Devices

Description: Automotive Dual-Antenna Power Supply with I2C Serial Interface

Download MAX20084ATEA/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

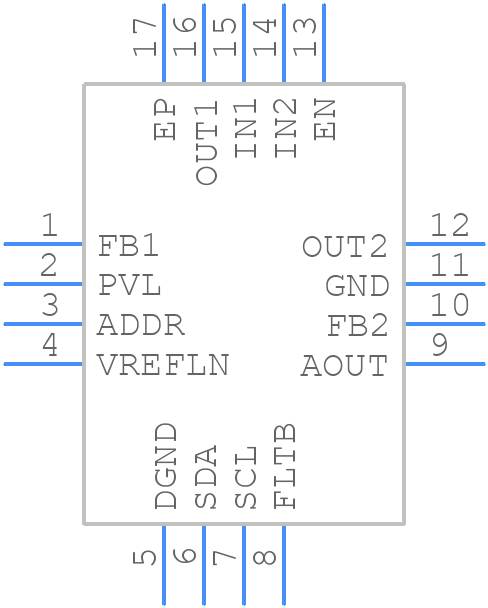

MAX20084ATEA/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20084ATEA/VY+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1644Y+4-
click to zoom
3D Models
MAX20084ATEA/VY+T - Analog Devices - 3D model - Quad Flat No-Lead - T1644Y+4-
click to zoom

MAX20084ATEA/VY+T Details

  • Manufacturer Part Number:

    MAX20084ATEA/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP_SS-4X4X0.75

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP_SS-4X4X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX20084ATEA/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20084ATEA/VY+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20084ATEA/VY+T depends on the specific application requirements. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output stages. A good starting point is to use 1uF to 10uF capacitors for both input and output.
  • The MAX20084ATEA/VY+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
  • The MAX20084ATEA/VY+T requires a single 3.3V or 5V power supply. It's essential to ensure that the power supply is clean and well-regulated, with minimal noise and ripple. A decoupling capacitor of 0.1uF to 1uF should be placed close to the device's power pin. Additionally, the device's bias pins should be connected to the recommended voltage levels, and the input and output stages should be properly biased for optimal performance.
  • The typical startup time for the MAX20084ATEA/VY+T is around 1ms to 2ms, depending on the input voltage and the output load. However, this time can vary depending on the specific application and the device's configuration.
