MAX20087ATPB/VY+T - Analog Devices

Description: Dual/Quad Camera Power Protectors

Download MAX20087ATPB/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

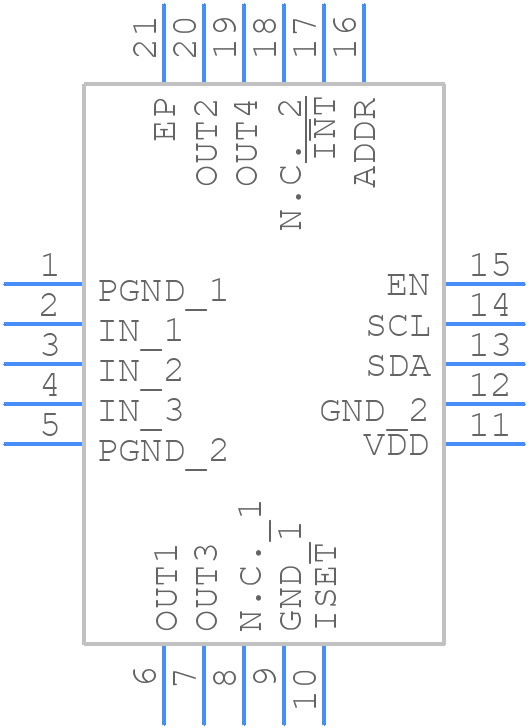

MAX20087ATPB/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20087ATPB/VY+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044Y+4C
click to zoom
3D Models
MAX20087ATPB/VY+T - Analog Devices - 3D model - Quad Flat No-Lead - T2044Y+4C
click to zoom

MAX20087ATPB/VY+T Details

  • Manufacturer Part Number:

    MAX20087ATPB/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP_SS-4X4X0.75

  • Package Description:

    SWTQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP_SS-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-04-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    Adjustable Current Limit

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX20087ATPB/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20087 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The MAX20087 requires a 3.3V or 5V power supply, and the EN pin should be tied to a logic high to enable the device. The device also has a power-on reset (POR) circuit that ensures the device is properly reset during power-up. Additionally, the device has a default configuration, but it can be programmed using the I2C interface.
  • The MAX20087 can handle a maximum current of 1A per channel, with a total current limit of 2A for both channels. However, the device also has an overcurrent protection (OCP) feature that limits the current to 1.5A per channel to prevent damage.
  • To troubleshoot issues with the MAX20087, start by checking the power supply and ensuring that the device is properly powered up. Then, check the input and output signals using an oscilloscope to ensure they are within the specified ranges. If the issue persists, check the I2C interface and ensure that the device is properly configured. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the MAX20087 is AEC-Q100 qualified and is suitable for automotive applications. It meets the requirements for high-reliability and high-temperature operation, making it a good choice for automotive systems.
