MAX20087ATPC/VY+ - Analog Devices

Description: Dual/Quad Camera Power Protectors

Download MAX20087ATPC/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

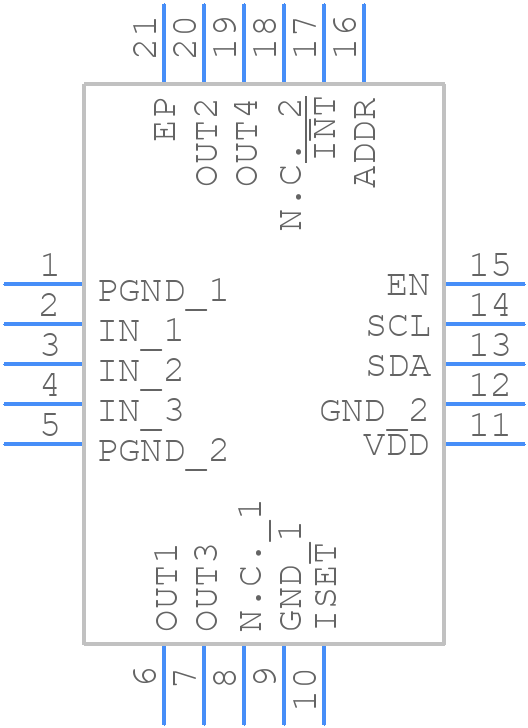

MAX20087ATPC/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20087ATPC/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044Y+4C
click to zoom
3D Models
MAX20087ATPC/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - T2044Y+4C
click to zoom

MAX20087ATPC/VY+ Details

  • Manufacturer Part Number:

    MAX20087ATPC/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP_SS-4X4X0.75

  • Package Description:

    SWTQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP_SS-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-04-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    Adjustable Current Limit

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX20087ATPC/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX20087ATPC/VY+ to achieve optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device.
  • To ensure proper power and biasing, make sure to follow the recommended power supply voltage and current ratings, and use a suitable voltage regulator to power the device. Also, ensure that the input and output voltage rails are properly decoupled and filtered to prevent noise and oscillations.
  • The MAX20087ATPC/VY+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot common issues, start by checking the PCB layout and ensuring that it follows the recommended guidelines. Also, verify that the power supply voltage and current ratings are within the recommended specifications. Use an oscilloscope to check for oscillations or noise on the input and output signals, and ensure that the device is properly decoupled and filtered.
  • Yes, the MAX20087ATPC/VY+ is suitable for high-reliability and automotive applications. It is designed to meet the requirements of AEC-Q100, a standard for automotive-grade ICs. However, it's recommended to consult with Analog Devices Inc. for specific requirements and qualifications for your application.
