MAX20089ATPA/VY+ - Analog Devices

Description: Dual/Quad Camera Power Protectors

Download MAX20089ATPA/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

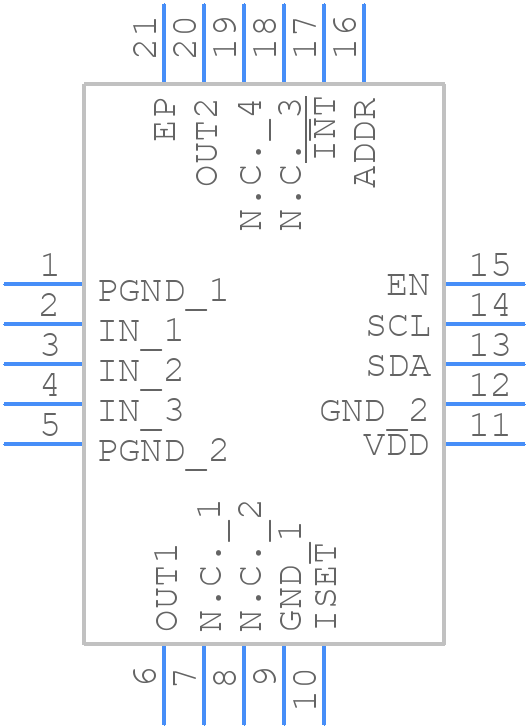

MAX20089ATPA/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20089ATPA/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX20089ATPA/VY+aa
click to zoom
3D Models
MAX20089ATPA/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX20089ATPA/VY+aa
click to zoom

MAX20089ATPA/VY+ Details

  • Manufacturer Part Number:

    MAX20089ATPA/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP_SS-4X4X0.75

  • Package Description:

    SWTQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP_SS-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-04-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    Adjustable Current Limit

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX20089ATPA/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20089ATPA/VY+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20089ATPA/VY+ depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input/output signals. A good starting point is to use 1uF to 10uF capacitors for the input and output filters.
  • The MAX20089ATPA/VY+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
  • To troubleshoot common issues with the MAX20089ATPA/VY+, start by checking the PCB layout and ensuring that it follows the recommended guidelines. Verify that the input and output capacitors are properly selected and placed. Check for any signs of overheating, and ensure that the device is properly powered. Use an oscilloscope to measure the input and output signals, and look for any signs of oscillations or instability. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the MAX20089ATPA/VY+ is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
