MAX20090AUP/V+T - Analog Devices

Description: LED Lighting Drivers Automotive High Voltage LED Controller

Download MAX20090AUP/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

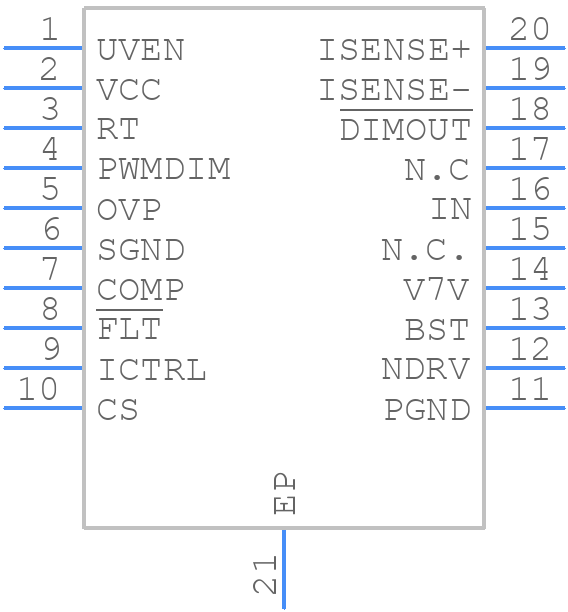

Symbol
MAX20090AUP/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20090AUP/V+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U20E+3C
click to zoom
3D Models
MAX20090AUP/V+T - Analog Devices - 3D model - Small Outline Packages - U20E+3C
click to zoom

MAX20090AUP/V+T Details

  • Manufacturer Part Number:

    MAX20090AUP/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4-4.4_MM

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX20090AUP/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20090AUP/V+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20090AUP/V+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input/output signals. A good starting point is to use 1uF to 10uF capacitors for both input and output.
  • The MAX20090AUP/V+T has an operating temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure that the device operates within the recommended temperature range to maintain optimal performance and reliability.
  • To troubleshoot common issues with the MAX20090AUP/V+T, start by checking the PCB layout and ensuring that it follows the recommended guidelines. Verify that the input and output capacitors are correctly selected and placed. Check the power supply voltage and ensure it's within the recommended range. Use an oscilloscope to measure the input and output signals and look for any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the MAX20090AUP/V+T is suitable for high-reliability and automotive applications. The device is AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX20090AUP/V+T Overview

Use the download button to access the MAX20090AUP/V+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
