MAX20092ATJ/VY+ - Analog Devices

Description: 12-Switch Matrix Manager for Automotive Lighting

Download MAX20092ATJ/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

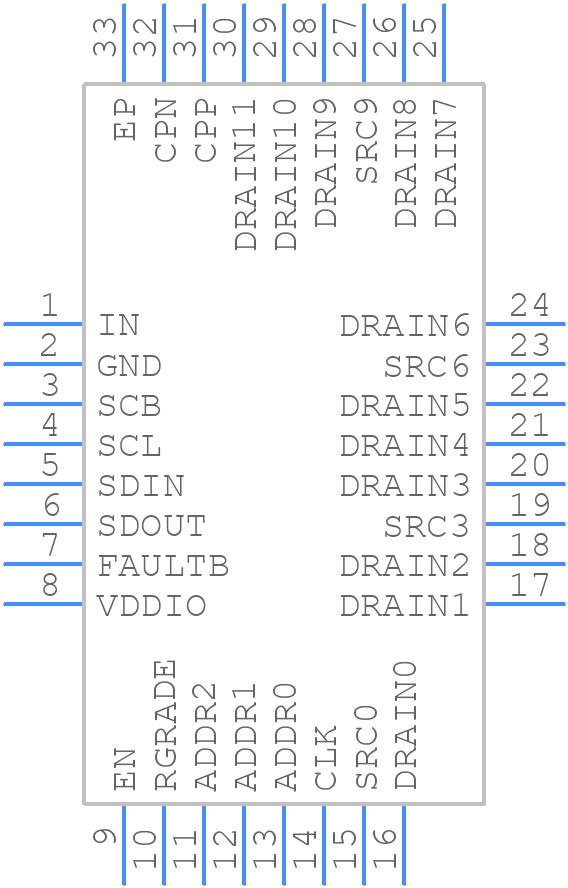

MAX20092ATJ/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20092ATJ/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-LFCSP_SS-5X5X0.75_2023-2
click to zoom
3D Models
MAX20092ATJ/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - 32-LFCSP_SS-5X5X0.75_2023-2
click to zoom

MAX20092ATJ/VY+ Details

  • Manufacturer Part Number:

    MAX20092ATJ/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP_SS-5X5X0.75

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP_SS-5X5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    12

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    4 MHz

MAX20092ATJ/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20092ATJ/VY+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20092ATJ/VY+ depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output ripple and transient response. A minimum capacitance of 10uF is recommended for the input capacitor, and a minimum capacitance of 22uF is recommended for the output capacitor.
  • The MAX20092ATJ/VY+ has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • Troubleshooting issues with the MAX20092ATJ/VY+ involves a systematic approach. First, verify that the device is properly powered and that the input voltage is within the recommended range. Check the output voltage and current to ensure they are within the expected range. Use an oscilloscope to check for any unusual waveforms or noise. Check the PCB layout and ensure that it follows the recommended guidelines. If the issue persists, consult the datasheet and application notes, and contact Analog Devices' technical support if necessary.
  • Yes, the MAX20092ATJ/VY+ is suitable for high-reliability and automotive applications. The device is AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to ensure that the device is operated within the recommended temperature range and that the PCB layout follows the recommended guidelines. Additionally, it's recommended to follow the guidelines for high-reliability and automotive applications, such as using redundant systems and implementing fault detection and correction mechanisms.
