MAX20092ATJ/VY+T - Analog Devices

Description: Automotive Ready: AEC-Q100 Qualified ● Flexible Configuration Allows the Use of the Same Device in Different Applications • Single-, Dual-, and Quad-String Configurations • Up to 12 Switches in Series in Single-String Configurations • Up to 6 Switches in Series in Dual-String Configurations • Up to 3 Switches in Series in Quad-String Configurations • Up to 2 LEDs per Switch ● Optimal PWM Dimming Arrangement Provides Excellent Dimming Performance • Programmable 12-Bit PWM Dimming • Fade Transit

Download MAX20092ATJ/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

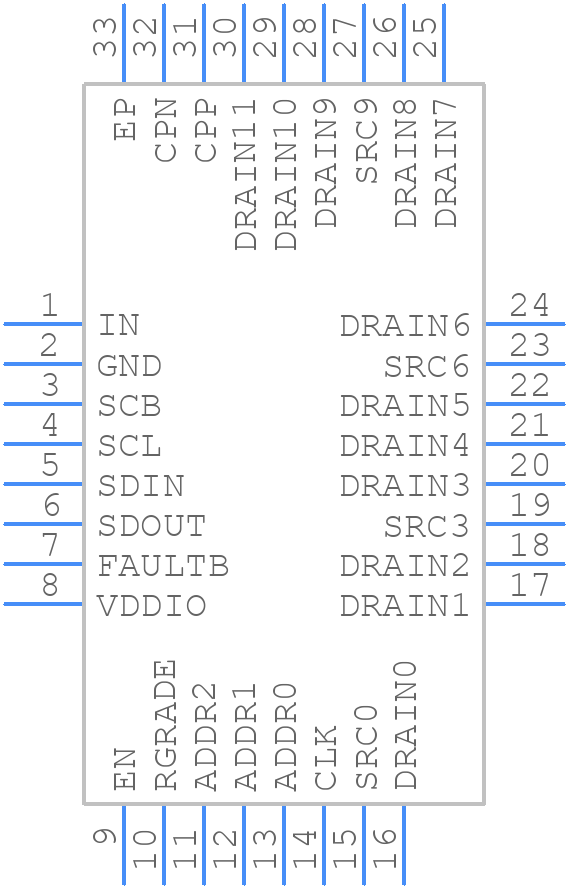

MAX20092ATJ/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20092ATJ/VY+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin (5mm x 5mm) SWTQFN
click to zoom
3D Models
MAX20092ATJ/VY+T - Analog Devices - 3D model - Quad Flat No-Lead - 32-Pin (5mm x 5mm) SWTQFN
click to zoom

MAX20092ATJ/VY+T Details

  • Manufacturer Part Number:

    MAX20092ATJ/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP_SS-5X5X0.75

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP_SS-5X5X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-09-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    12

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    4 MHz

MAX20092ATJ/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20092ATJ/VY+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20092ATJ/VY+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output signals. A good starting point is to use 1uF to 10uF capacitors for both input and output.
  • The MAX20092ATJ/VY+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the maximum junction temperature should not exceed 150°C.
  • The MAX20092ATJ/VY+T requires a single 3.3V or 5V power supply, and the device should be biased according to the recommended operating conditions in the datasheet. It's essential to ensure that the power supply is clean and well-regulated, and that the device is properly decoupled using capacitors and resistors as recommended in the application notes.
  • The typical startup time for the MAX20092ATJ/VY+T is around 1ms to 2ms, depending on the specific application and operating conditions. However, this time can vary depending on the input voltage, output load, and other factors.
