MAX20313EWC+T - Analog Devices

Description: Current & Power Monitors & Regulators 500-6000mA Adjustable Current Limiting Switch; EN active high; continuous mode

Download MAX20313EWC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

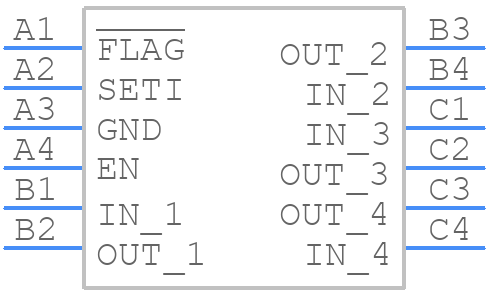

Symbol
MAX20313EWC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20313EWC+T - Analog Devices PCB footprint - BGA - BGA - W121K1+1
click to zoom
3D Models
MAX20313EWC+T - Analog Devices - 3D model - BGA - W121K1+1
click to zoom

MAX20313EWC+T Details

  • Manufacturer Part Number:

    MAX20313EWC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    WLP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    1.648 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    4.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.448 mm

MAX20313EWC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20313EWC+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the MAX20313EWC+T, make sure to follow the recommended power-up sequence, which is to power up the VCC pin first, followed by the VIN pin. During power-down, reverse the sequence. Also, ensure that the input voltage ramps up and down slowly to prevent damage to the device.
  • The MAX20313EWC+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • To troubleshoot issues with the MAX20313EWC+T, start by checking the power supply and input voltage levels. Verify that the device is properly powered up and that the input voltage is within the recommended range. Check for any signs of overheating, and ensure that the device is properly soldered and mounted on the PCB. If the issue persists, consult the datasheet and application notes for further guidance.
  • The MAX20313EWC+T is a high-reliability device, but it's essential to follow proper design and manufacturing guidelines to ensure its reliability in safety-critical applications. Consult the datasheet and application notes for guidance on designing and testing the device for high-reliability applications.
