MAX20323DENC+T - Analog Devices

Description: Power Management Specialized - PMIC USB Type-C CC-Pin Overvoltage Protector

Download MAX20323DENC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

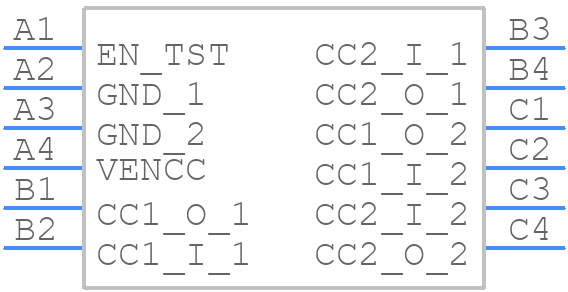

MAX20323DENC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20323DENC+T - Analog Devices PCB footprint - BGA - BGA - N121M1+1
click to zoom
3D Models
MAX20323DENC+T - Analog Devices - 3D model - BGA - N121M1+1
click to zoom

MAX20323DENC+T Details

  • Manufacturer Part Number:

    MAX20323DENC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    WLP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    R-PBGA-B12

  • Length:

    1.697 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    4.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.318 mm

MAX20323DENC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20323DENC+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper powering and decoupling of the MAX20323DENC+T, use a high-quality power supply with low noise and ripple. Decouple the device with a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close to the device as possible. Additionally, use a 1uF ceramic capacitor to decouple the VCC pin. Make sure to follow the power-up and power-down sequencing guidelines provided in the datasheet.
  • The MAX20323DENC+T has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • To troubleshoot issues with the MAX20323DENC+T, start by verifying the power supply and decoupling. Check for any signs of overheating, and ensure that the device is properly soldered and mounted. Use an oscilloscope to measure the input and output voltages, and check for any signs of oscillation or ringing. Consult the datasheet and application notes for troubleshooting guidelines, and consider contacting Analog Devices' technical support for further assistance.
  • The MAX20323DENC+T is a high-reliability device, but it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required safety and reliability standards. Consult the datasheet and application notes for guidance on using the device in high-reliability or safety-critical applications, and consider consulting with Analog Devices' technical support and/or a qualified reliability engineer.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX20323DENC+T Overview

Use the download button to access the MAX20323DENC+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
