MAX20333ENL+T - Analog Devices

Description: Flexible Operation • Wide Range of Programmable Current Limit (0.2A to 4.75A) • Wide Operating Range: 3.5V to 22V (MAX20333/A/ B/C/D/E/F/G/H/I/J/K), 3.3V to 22V (MAX20333L/M/ N) • Three Different Current-Limit Modes: NM, HCM, LPM • Three Different Current-Limit Behaviors: Autoretry, Latchoff, Continuous • Power Good Input • Current Monitoring ● Safe Operation • Precision Current Limit • Output Short Protection • Thermal Protection • Flag Output ● UL 2367 Recognized–File No. E211395 • MAX20

Download MAX20333ENL+T Model

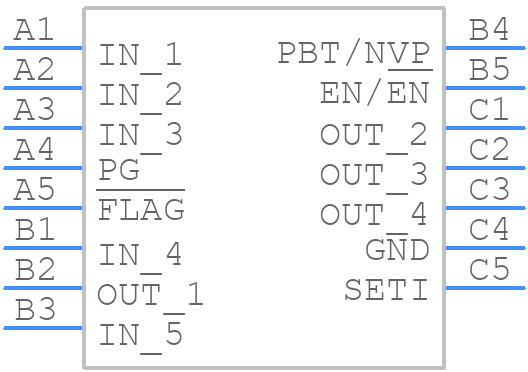

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX20333ENL+T - Analog Devices PCB footprint - BGA - BGA - N151A2+1
click to zoom
3D Models
MAX20333ENL+T - Analog Devices  - 3D model - BGA - N151A2+1
click to zoom

MAX20333ENL+T Details

  • Manufacturer Part Number:

    MAX20333ENL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    15-WLCSP-N/A

  • Pin Count:

    15

  • Manufacturer Package Code:

    15-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-10-08

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PBGA-B15

  • Length:

    2.098 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA15,3X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    9 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +1.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.518 mm

MAX20333ENL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20333ENL+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The input capacitors for the MAX20333ENL+T should be selected based on the input voltage range, ripple current, and ESR requirements. A minimum capacitance of 10uF is recommended, and the capacitor should be rated for the maximum input voltage. X5R or X7R ceramic capacitors are suitable options. It's also important to consider the capacitor's temperature coefficient and aging characteristics.
  • The MAX20333ENL+T is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, when designing the system.
  • The MAX20333ENL+T is a surface-mount device and can be susceptible to vibration-induced failures. To ensure reliability in high-vibration environments, it's recommended to use a robust PCB design, secure the device with a suitable adhesive or mechanical fastening, and consider using a vibration-dampening material or potting compound.
  • To troubleshoot issues with the MAX20333ENL+T, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component placement for any errors or omissions. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting specific issues, and consider seeking support from Analog Devices' technical support team.
