MAX20406AFOD/VY+ - Analog Devices

Description: Automotive 36V, 4A/5A/6A, Fully Integrated Synchronous Silent Switcher Buck Converters

Download MAX20406AFOD/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

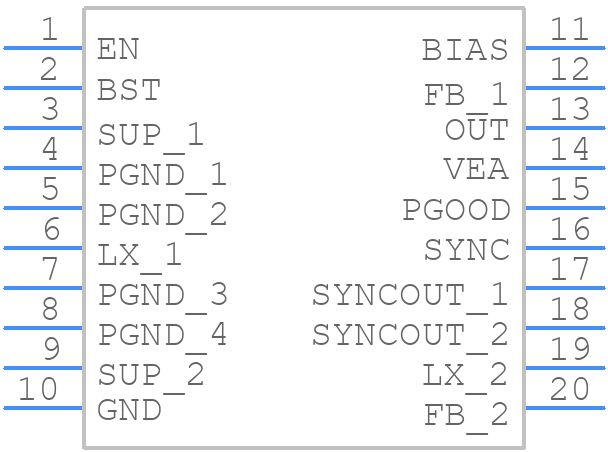

MAX20406AFOD/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20406AFOD/VY+ - Analog Devices PCB footprint - Other - Other - F173 A3 FY+6
click to zoom
3D Models
MAX20406AFOD/VY+ - Analog Devices - 3D model - Other - F173 A3 FY+6
click to zoom

MAX20406AFOD/VY+ Details

  • Manufacturer Part Number:

    MAX20406AFOD/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    17-LFCSP_SS-3.5X3.5X0.75

  • Pin Count:

    17

  • Manufacturer Package Code:

    17-LFCSP_SS-3.5X3.5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-07-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PQCC-N17

  • JESD-609 Code:

    e3

  • Length:

    3.75 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.006 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    400 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX20406AFOD/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20406AFOD/VY+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and configuration, follow the recommended power-up sequence, connect the EN pin to a valid logic level, and ensure the input voltage is within the recommended range. Also, configure the device according to the datasheet recommendations for the desired operating mode.
  • The MAX20406AFOD/VY+ has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device temperature below this limit by providing adequate heat sinking, using a thermal pad, and avoiding high ambient temperatures.
  • To troubleshoot issues, start by verifying the power supply and input signals, then check the output signals and device configuration. Use an oscilloscope to monitor the signals and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on specific troubleshooting steps.
  • Yes, to minimize EMI/EMC issues, use a shielded enclosure, keep the device away from high-frequency sources, and use filtering and shielding on the input and output lines. Follow good PCB layout practices and use EMI-absorbing materials to reduce radiation.
