MAX20408EAFOD/VY+ - Analog Devices

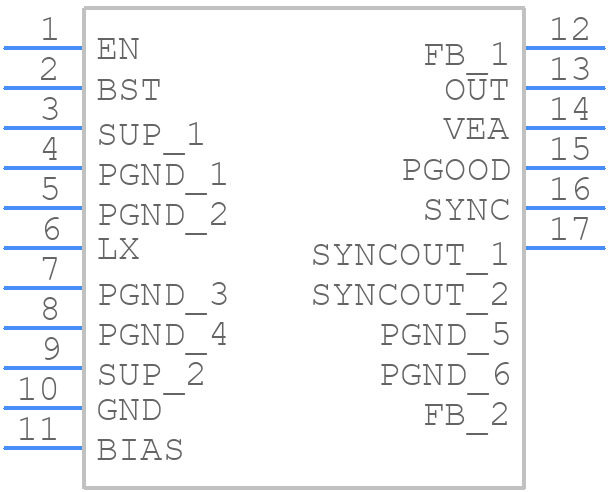

MAX20408EAFOD/VY+ Details

• Manufacturer Part Number:

  MAX20408EAFOD/VY+

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  FC2QFN-17

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  3 V

• Input Voltage-Nom:

  14 V

• JESD-30 Code:

  R-XQCC-N17

• Length:

  3.75 mm

• Number of Functions:

  1

• Number of Terminals:

  17

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  8 A

• Output Voltage-Max:

  3.335 V

• Output Voltage-Min:

  3.265 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  WQCCN

• Package Equivalence Code:

  LCC17(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY VERY THIN PROFILE

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  2275 kHz

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  3.5 mm
