Part Image

MAX20416ATGH/V+ - Analog Devices

Description: Buck Switching Regulator IC Positive Fixed 1.1V, 1.8V 2 Output 3A, 3A 24-WFQFN Exposed Pad

Download MAX20416ATGH/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

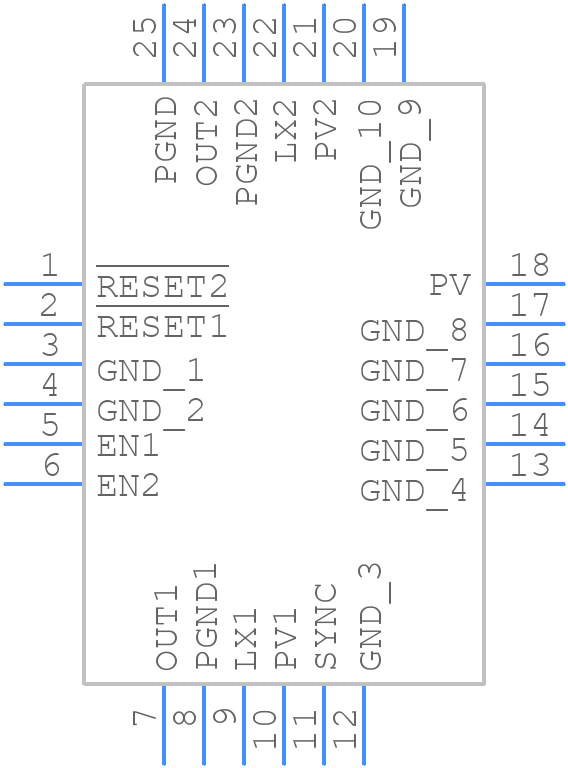

Symbol
MAX20416ATGH/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20416ATGH/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4C
click to zoom
3D Models
MAX20416ATGH/V+ - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4C
click to zoom

MAX20416ATGH/V+ Details

  • Manufacturer Part Number:

    MAX20416ATGH/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX20416ATGH/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20416ATGH/V+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper power-up and configuration, follow the power-up sequence recommended in the datasheet. Apply the power supply to the device in the correct order (VCC, then VEE), and ensure that the input voltage is within the recommended range. Also, configure the device's registers according to the application requirements, and verify that the device is functioning correctly using the provided evaluation software or tools.
  • The MAX20416ATGH/V+ has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and thermal management. Use a heat sink with a thermal resistance of less than 10°C/W, and ensure good airflow around the device. Additionally, follow the thermal design guidelines provided in the datasheet and application notes to prevent overheating.
  • To troubleshoot issues with the MAX20416ATGH/V+, start by verifying that the device is properly powered and configured. Check the input and output signals using an oscilloscope or logic analyzer, and ensure that the device is operating within the recommended specifications. Consult the datasheet and application notes for troubleshooting guidelines, and contact Analog Devices' technical support if the issue persists.
  • Yes, the MAX20416ATGH/V+ is a high-frequency device and requires careful attention to EMI/EMC considerations. Use shielding, filtering, and grounding techniques to minimize electromagnetic interference. Follow the EMI/EMC guidelines provided in the datasheet and application notes, and ensure that the device is placed in a shielded enclosure or on a PCB with a solid ground plane.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX20416ATGH/V+ Overview

Use the download button to access the MAX20416ATGH/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
